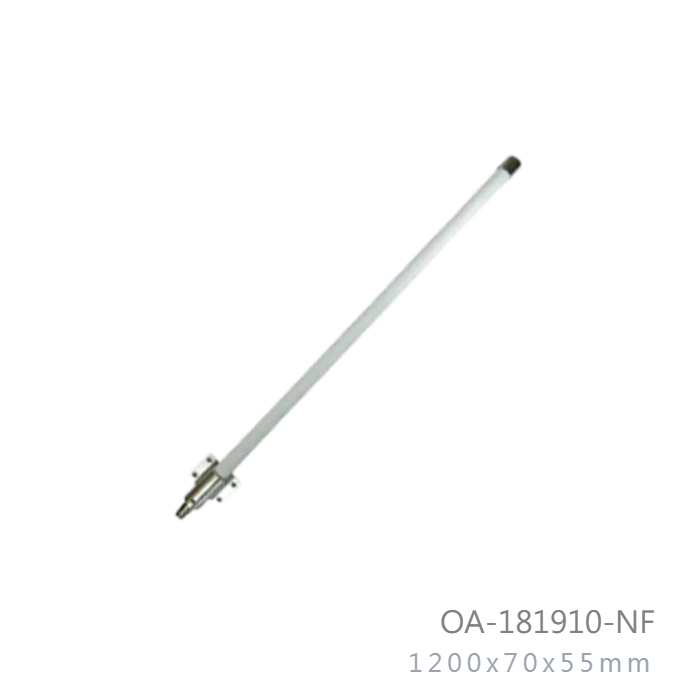

1.85GHz to 1.99GHz 10dBi Vertical Omni Directional Outdoor Antenna1.85GHz to 1.99GHz 10dBi Vertical Omni Directional Outdoor Antenna1.85GHz to 1.99GHz 10dBi Vertical Omni Directional Outdoor Antenna

Model No: OA-181910-NF

  • Gain : 10 dBi
  • Dimension : 1200x70x55mm
  • Weight : 770g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.9 deg
INQUIRY

Applications:

  • 1850MHz - 1990MHz Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

1850MHz - 1990MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

10 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

9 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

1200 mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

700 g

Accessories (G.W)

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Well Mount
Pole Mount ing32mm to 45mm
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
