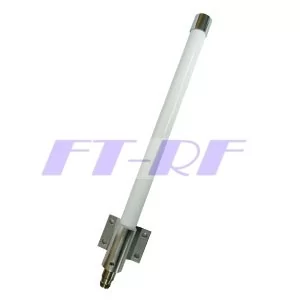

2.4GHz-2.5GHz 4dBi Outdoor OMNI Directional Antenna2.4GHz-2.5GHz 4dBi Outdoor OMNI Directional Antenna2.4GHz-2.5GHz 4dBi Outdoor OMNI Directional Antenna

Model No: OA-242504-NF

  • Dimension : 300x70x55mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.50 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz 4dbi ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wirless Lan

  • Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Pubic Wireless Hotspot

  • Wi Fi, RFID

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Installed for Collinear Vertical Polarization

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

4 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beamwidth (AVG)

50 Deg

Horizontal Beamwidth (AVG)

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

265mm

Diameter (MAX)

20 x 20mm

Antenna Weight (G.W)

170 g

Accessories (G.W)

50 g

Application Indoor / Outdoor

Radom Material

White Fiberglass

Parts Material

Aluminum

Mount Style No
Mounting Stainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
