2.4GHz to 2.5GHz Omni Directional Antenna


Omni Directional Antenna with frequency band from 2.4GHz to 2.5GHz, with application in WIFI, 2.4GHz, MIMO, IEEE 802.11b/g/n/p, Wireless Lan

1. Waterproof design
2. withstand strong winds
3. For a variety of environments
4. Quick & Easy Installation

OA-242502-NF

2.4GHz to 2.5GHz 2dBi Outdoor OMNI Directional Antenna

  • Dimension : 300x70x55mm
  • Weight : 280g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.50 deg
View Details
OA-242503-NF

2.4GHz to 2.5GHz 3dBi Outdoor OMNI Directional Antenna

  • Dimension : 170x70x50mm
  • Weight : 300g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.67 deg
View Details
OA-242504-NF

2.4GHz-2.5GHz 4dBi Outdoor OMNI Directional Antenna

  • Dimension : 300x70x55mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.50 deg
View Details
OA-242505-NF

2.4GHz to 2.5GHz 5dBi Outdoor OMNI Directional Antenna

  • Dimension : 380x70x50mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.38 deg
View Details
OA-242506-NF

2.4GHz-2.5GHz 6dBi Outdoor OMNI Directional Antenna

  • Dimension : 460x70x50mm
  • Weight : 350g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details

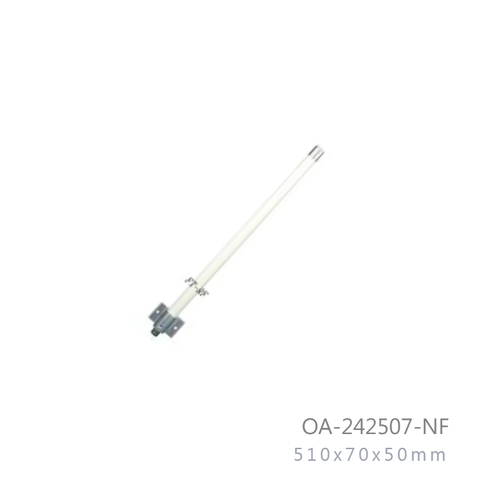

OA-242507-NF

2.4GHz to 2.5GHz 7dBi Outdoor OMNI Directional Antenna

  • Dimension : 510x70x50mm
  • Weight : 415g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.15 deg
View Details

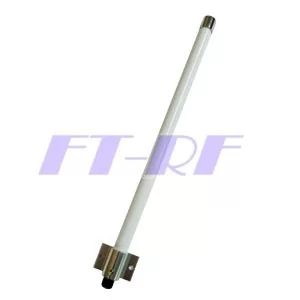

OA-242508-NF

2.4GHz-2.5GHz 8dBi Outdoor OMNI Directional Antenna

  • Dimension : 523X70x50mm
  • Weight : 380g
  • Connector : N-Female
  • -3dB Beamwidth : Horz.360 deg Vert.15 deg
View Details

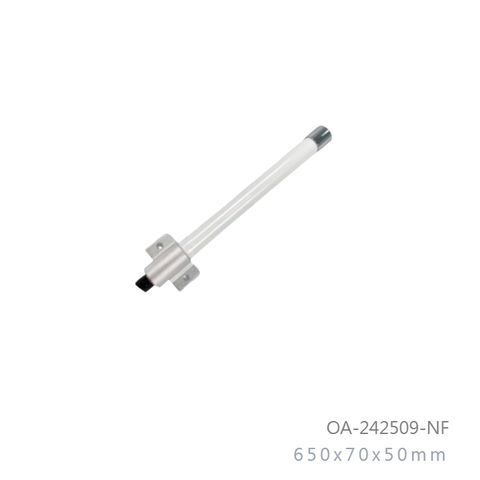

OA-242509-NF

2.4GHz to 2.5GHz 9dBi Outdoor OmniDirectional Antenna

  • Dimension : 650x70x50mm
  • Weight : 500g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.10 deg
View Details

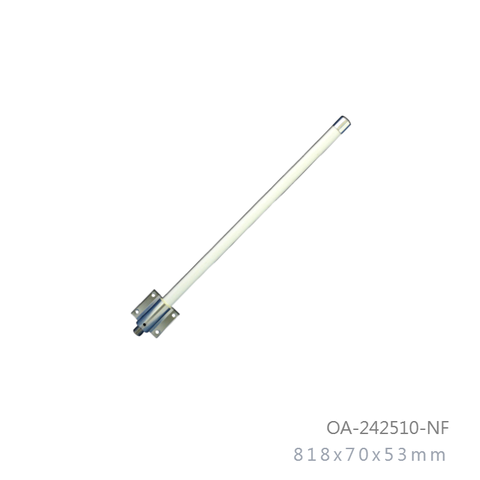

OA-242510-NF

2.4GHz to 2.5GHz 9dBi Outdoor OMNI Directional Antenna

  • Dimension : 818x70x53mm
  • Weight : 480g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.8deg
View Details

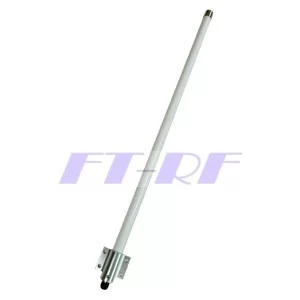

OA-242512-NF

2.4GHz to 2.5GHz 12dBi Outdoor OMNI Directional Antenna

  • Dimension : 1094x70x50mm
  • Weight : 710g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.8 deg
View Details

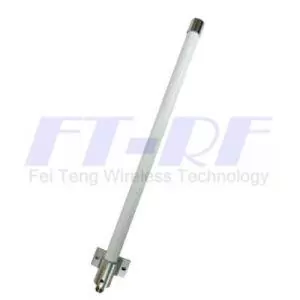

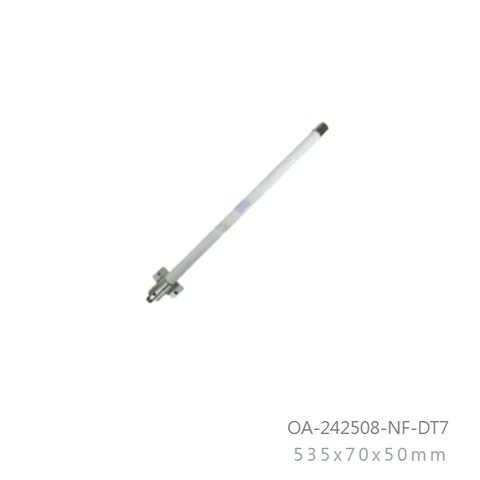

OA-242508-NF-DT7

2.4GHz to 2.5GHz 8dBi Outdoor OMNI Directional Down Tilt 7 Deg Antenna

  • Original Model No.: OA-242508DT7-NF
  • Dimension : 535x70x50mm
  • Weight: 385g
  • Connector: N-Female
  • Beamwidth: Horz.360 deg Vert.12 deg
  • Down Tilt: 7 deg
View Details

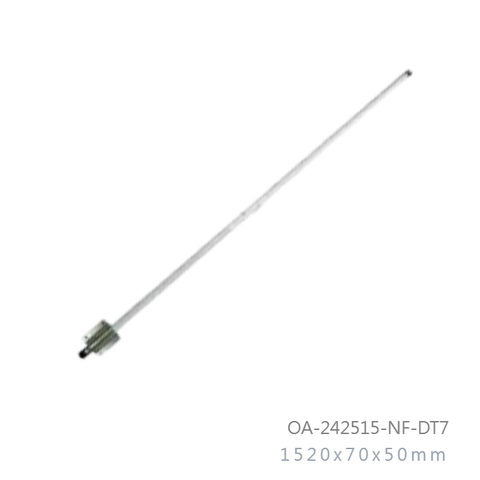

OA-242515-NF-DT7

2.4GHz to 2.5GHz 15dBi Outdoor OMNI Directional Down Tilt 7 Deg Antenna

  • Original Model No.: OA-242515DT7-NF
  • Dimension : 1520x70x50mm
  • Weight : 900g
  • Connector : N-Female
  • -3dB Beamwidth : Horz.360 deg Vert.6 deg Down Tilt 7deg
View Details
