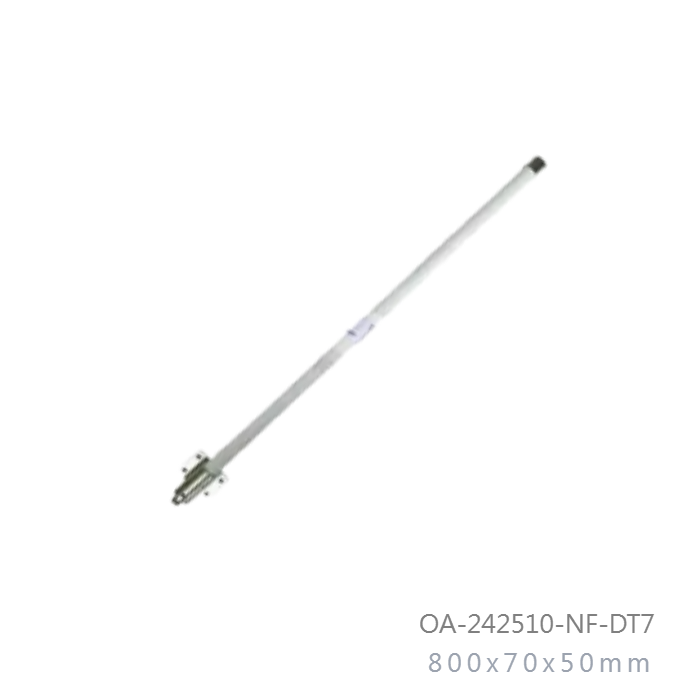

2.4GHz to 2.5GHz 10dBi Outdoor OMNI Directional Down Tilt 7 Deg Antenna

Model No: OA-242510-NF-DT7

  • Original Model No.: OA-242510-DT7-NF
  • Dimension : 800x70x50mm
  • Weight: 480g
  • Connector: N-Female
  • Beamwidth: Horz.360 deg Vert.8 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID
  • Antenna Radiation Down Tilt

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • Installed for Collinear Vertical Polarization
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Return Loss (LOW)

15db

Antenna Type

Collinear

Gain (MAX)

10 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

8 Deg

Horizontal Beam-width

360 Deg

Down Tilt 7 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

800mm

Diameter (MAX)

70 x 55mm

Antenna Weight (N.W)

480 g

Accessories (N.W)

80 g

Wind Survival

Greater than 150MPH

Poerating Temperature

-40 to +80

Radome Material

White Fiberglass

Parts Material

Aluminum

Mounting

Stainless Steel

Safety, Emission and other

RoHs, WEEE
