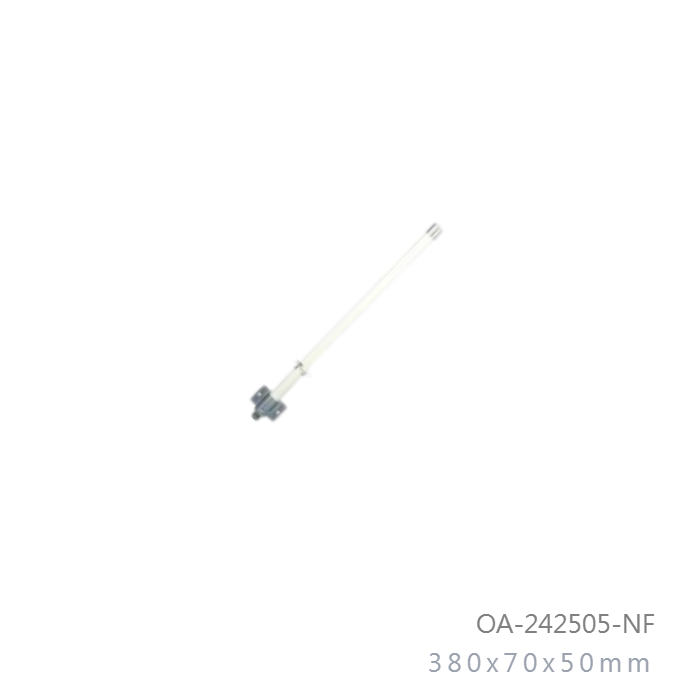

2.4GHz to 2.5GHz 5dBi Outdoor OMNI Directional Antenna2.4GHz to 2.5GHz 5dBi Outdoor OMNI Directional Antenna2.4GHz to 2.5GHz 5dBi Outdoor OMNI Directional Antenna

Model No: OA-242505-NF

Datasheet:Download

  • Dimension : 380x70x50mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.38 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz 5dbi ISM Band

  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan

  • Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Pubic Wireless Hotspot

  • WiFi, RFID

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • Installed for Collinear Vertical Polarization

  • RoHS Compliant

The OA-242505-NF is a high-quality 2.4GHz omnidirectional antenna that can be used in Bluetooth, public wireless hotspot applications, and other point-to-multipoint applications in Canton, and is excellent for IEEE 802.11b, 802.11g, and 802.11n wireless networks.

The N-Female OA-242505-NF connector can be fixed directly on the wall or in the 32 x 45mm space below the pole, antenna mounting brackets surrounding the antenna.

The internal antenna of the OA-242505-NF is made of copper and has an excellent appearance for the stability of the fiberglass tube. The base is made of a molded aluminum-alloy body, has multiple internals, is coupled with water-resistant viscose, and has good wind resistance and prevention of water entry, as well as an overall structure that is anti-ultraviolet.

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

380mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

280 g

Accessories (G.W)

50 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
32 to 45mm Mounting Stainless Steel U-Type Screw

Wind Survival

Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS
