2.4GHz to 2.5GHz 7dBi Outdoor OMNI Directional Antenna2.4GHz to 2.5GHz 7dBi Outdoor OMNI Directional Antenna2.4GHz to 2.5GHz 7dBi Outdoor OMNI Directional Antenna

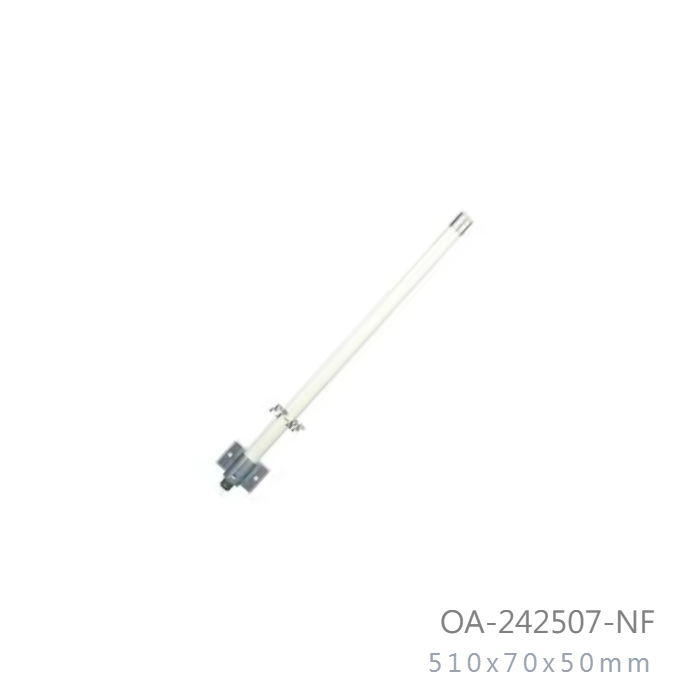

Model No: OA-242507-NF

  • Dimension : 510x70x50mm
  • Weight : 415g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.15 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless Lan
  • Omni Directional Multipoint applications
  • Bluetooth, Point to Multipoint
  • Pubic Wireless Hotspot
  • WiFi, RFID

Features:

  • Superior Performance
  • Lightweight
  • Good appearance design
  • Installed for Collinear Vertical Polarization
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beamwidth

15 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

510 mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

365 g

Accessories (G.W)

50 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
32 to 45mm Mounting Stainless Steel U-Type Screw

Wind Survival

Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS
