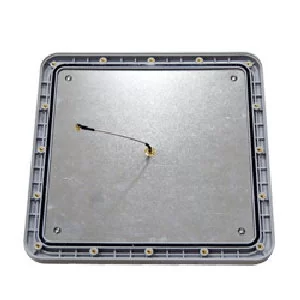

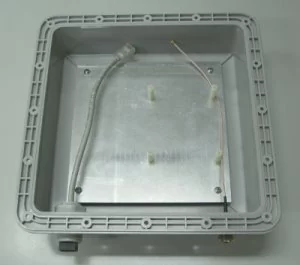

2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Dual Polarization Horizontal and Vertical Directional Outdoor Antenna

Model No: PE-252714-XXXX

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Port1:Horz.25 deg Vert.24 deg
  • Port2 Horz.24 deg Vert.23 deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz WiMAX Band

  • IEEE 802.16d

  • 13dBi Directional Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Antenna Jumper can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX / WiFi, WLAN /MIMO /

  • Wireless Video Systems

  • Dual Porizational Beam-With: Vertical and Horizontal

  • WiMAX 2.6 GHz 2T2R MINO

  • Two Port Antenna Connectors with cable

Features:

  • Superior Performance
  • Lightweight (UV ABS)
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets
  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

14 dBi

Polarization

Vertical and Horizontal

Maximum Power

2 Watts

Vertical Beam-width

Port1:24 deg

Port2:23 deg

Horizontal Beam-width

Port1:25 deg

Port2:24 deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Dual Polarization

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other x2
Connector I-PAX or MMCX or Other x2

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -20 to +60
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE



MODEL cable length Connector

PE-252714-RSM17

RG178 For 17cm x2

RP-SMA-Male x2

PE-252714-0SM17

RG178 For 17cm x2

SMA-Male x2

PE-252714-RMM17

RG178 For 17cm x2

R/A MMCX x2

PE-252714-RMC17

RG178 For 17cm x2

R/A MCX x2

PE-252714-RRS17

RG178 For 17cm x2

R/A RP-SMA x2

PE-252714-0IX17

1.3mm For 17cm x2

I-PEX x2

PE-252714-RSM21

RG178 For 21cm x2

RP-SMA-Male x2

PE-252714-0SM21

RG178 For 21cm x2

SMA-Male x2

PE-252714-RMM21

RG178 For 21cm x2

R/A MMCX x2

PE-252714-RMC21

RG178 For 21cm x2

R/A MCX x2

PE-252714-RRS21

RG178 For 21cm x2

R/A RP-SMA x2

PE-252714-0IX21

1.3mm For 21cm x2

I-PEX x2
