2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

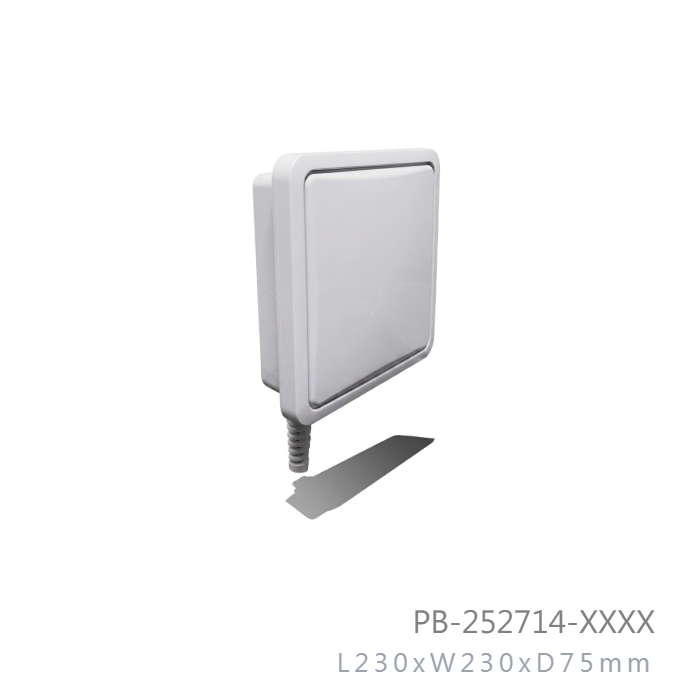

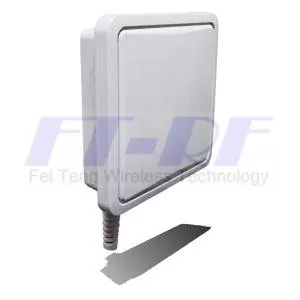

Model No: PB-252714-XXXX

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom Choice
  • Beam-width: Horz.33 deg Vert.30 deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz WiMAX Band
  • IEEE 802.16x Wireless Lan
  • 14dBi Directional Multipoint applications
  • Point to Point Bridge
  • SOC CPE User
  • Antenna Jumper can be switched to Equipment Connection
  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.
  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.
  • WiMAX ,WLANWireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

14 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-width

30 Deg

Horizontal Beam-width

33 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

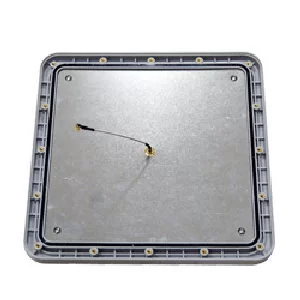

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male

Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

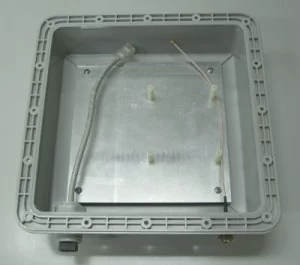

Inside Length x Width(Least) 190 x 170mm (User Space)
Inside Diameter(Least) 45mm (User Space)

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment Up or Down 20deg
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE



Model No. Cable length Connector

PB-252714-RSM17

RG178 For 17cm

RP-SMA-Male

PB-252714-0SM17

RG178 For 17cm

SMA-Male

PB-252714-RMM17

RG178 For 17cm

R/A MMCX

PB-252714-RMC17

RG178 For 17cm

R/A MCX

PB-252714-RRS17

RG178 For 17cm

R/A RP-SMA

PB-252714-0IP17

1.3mm For 17cm

I-Pex

PB-252714-RSM21

RG178 For 21cm

RP-SMA-Male

PB-252714-0SM21

RG178 For 21cm

SMA-Male

PB-252714-RMM21

RG178 For 21cm

R/A MMCX

PB-252714-RMC21

RG178 For 21cm

R/A MCX

PB-252714-RRS21

RG178 For 21cm

R/A RP-SMA

PB-252714-0IP21

1.3mm For 21cm

I-Pex
