2.5GHz to 2.7GHz Panel Directional Antenna

1. Perfect directivity
2. Lightweight
3. Simple installation

PD-252712-HV-NF

2.3GHz-2.4GHz 12dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

  • Dimension : L230xW230xD25mm
  • Weight : 0.8 KG
  • Connector : N-Female
  • Beam-width :Horz.Port1: 28 Deg / Port2: 27 Deg
  • Beam-width :Vert.Port1: 28 Deg / Port2: 26 Deg
View Details

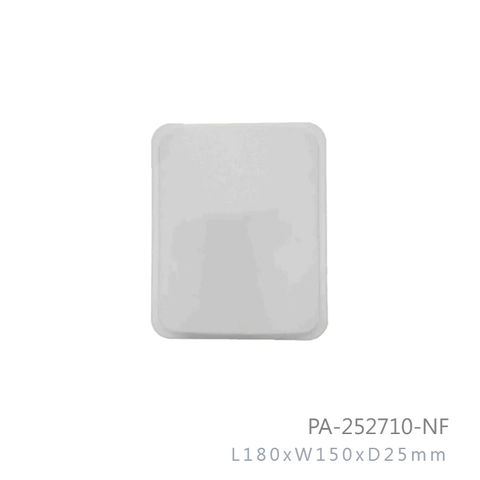

PA-252710-NF

2.5GHz-2.7GHz 10dBi Panel Directional Outdoor Antenna

  • Dimensions: L180xW150xD25mm
  • Weight: 0.57 KG
  • Connector: N-Female
  • Beam-width: Horz.72 Deg Vert.38 Deg
View Details
PA-252712-NF

2.5GHz-2.7GHz 12dBi Panel Directional Outdoor Antenna

  • Dimensions: L180xW150xD25mm
  • Weight: 0.57 KG
  • Connector: N-Female
  • Beam-width: Horz.42 Deg Vert.38 Deg
View Details
PA-252714-NF

2.5GHz-2.7GHz 14dBi Panel Directional Outdoor Antenna

  • Dimensions: L230xW230xD25mm
  • Weight: 340g
  • Connector: N-Female
  • Beam-width: Horz.33 Deg Vert.30 Deg
View Details
PA-252716-NF

2.5GHz-2.7GHz 16dBi Panel Directional Outdoor Antenna

  • Dimensions: L309xW309xD18mm
  • Weight: 600g
  • Connector: N-Female
  • Beam-width: Horz.23Deg Vert.20Deg
View Details

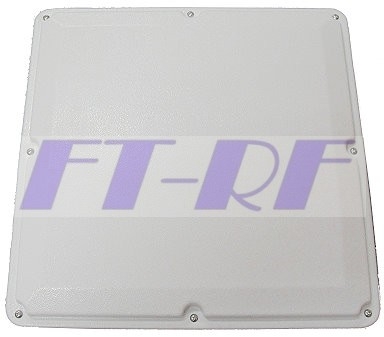

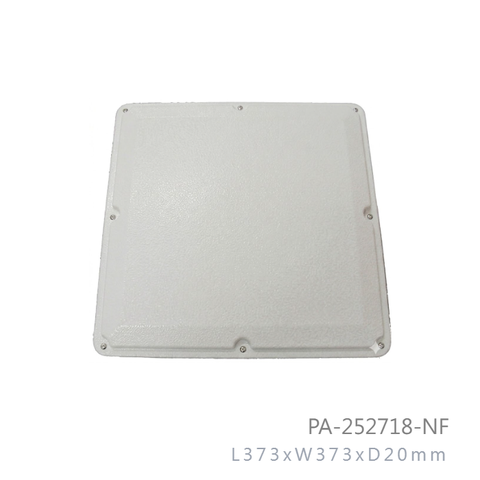

PA-252718-NF

2.5GHz-2.7GHz 18.5dbi Panel Directional Outdoor Antenna

  • Dimensions: L373xW373xD20mm
  • Weight: 1020g
  • Connector: N-Female
  • Beam-width: Horz.17Deg Vert.16Deg
View Details

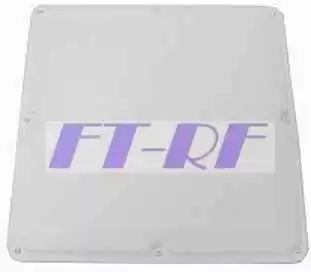

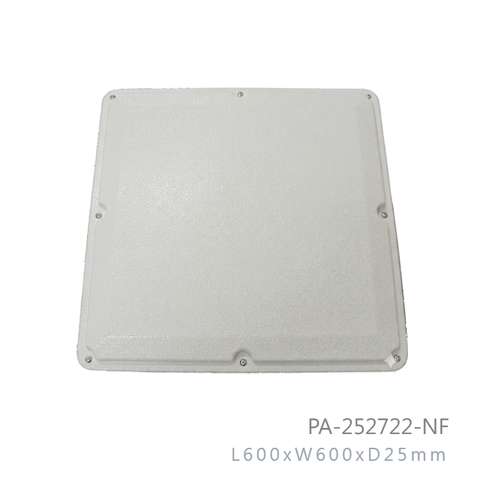

PA-252722-NF

2.5GHz-2.7GHz 22dBi Panel Directional Outdoor Antenna

  • Dimensions: L600xW600xD25mm
  • Weight: 2.5 KG
  • Connector: N-Female
  • Beam-width: Horz.14deg Vert.13deg
View Details
PB-252719-0SF

2.5GHz-2.7GHz 18.5dbi ABS Enclosure Horizontal or Vertical Panel Outdoor Directional Antenna

  • Dimension : L375xW375xD85mm
  • Weight : 1.85 KG
  • Connector : SMA-Female
  • Beam-width : Horz.17 Deg Vert.17 Deg
View Details

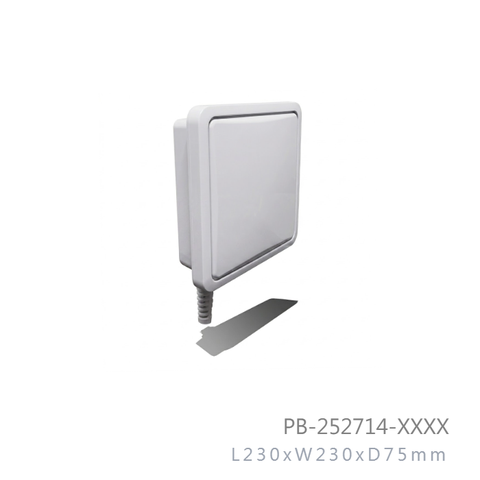

PB-252714-XXXX

2.5GHz-2.7GHz 14dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom Choice
  • Beam-width: Horz.33 deg Vert.30 deg
View Details

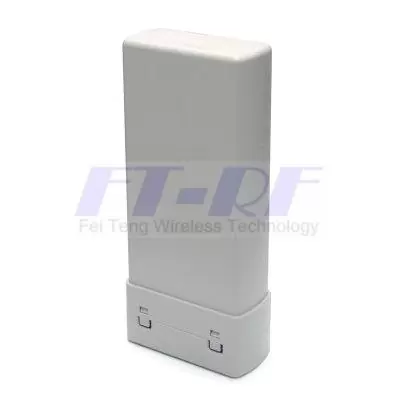

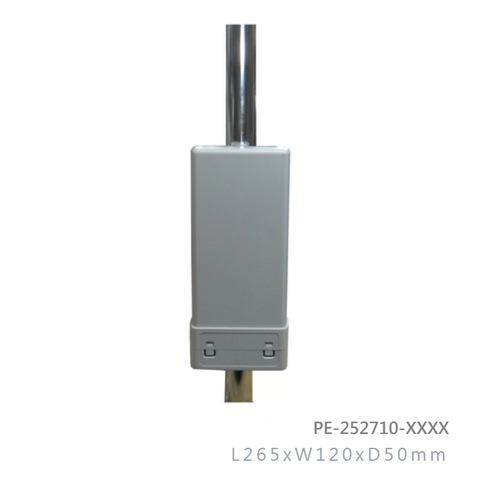

PE-252710-XXXX

2.5GHz-2.7GHz 9.5dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L265xW120xD50mm
  • Weight: 0.6 KG
  • Connector: Custom choice
  • Beam-width: Horz.62 deg Vert.38 deg
View Details
PV-252707-NF

2.5GHz-2.7GHz 7dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

  • Dimensions: L130xW130xD25mm
  • Weight: 0.6 KG
  • Connector: N-Female
  • Beam-width: Horz.Port1: 68 Deg / Port2: 64 Deg
  • Beam-width: Vert.Port1: 66 Deg / Port2: 62 Deg
View Details

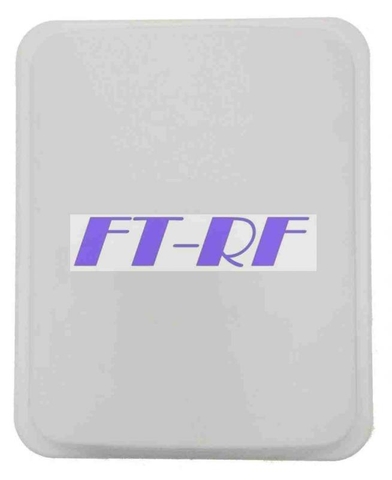

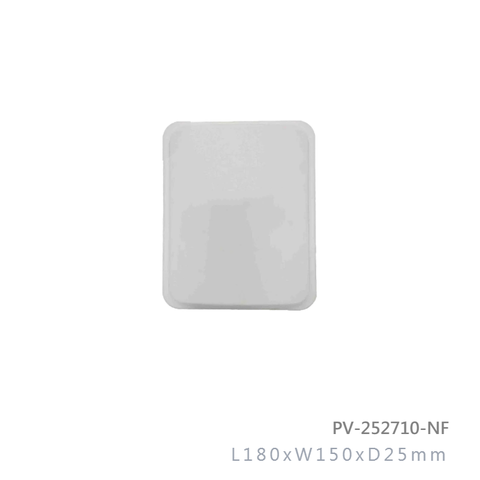

PV-252710-NF

2.5GHz-2.7GHz 9.5dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

  • Dimension : L180xW150xD25mm
  • Weight : 0.65 KG
  • Connector : N-Female
  • Beam-width :Horz.Port1: 32 Deg / Port2: 40 Deg
  • Beam-width :Vert.Port1: 30 Deg / Port2: 38 Deg
View Details
