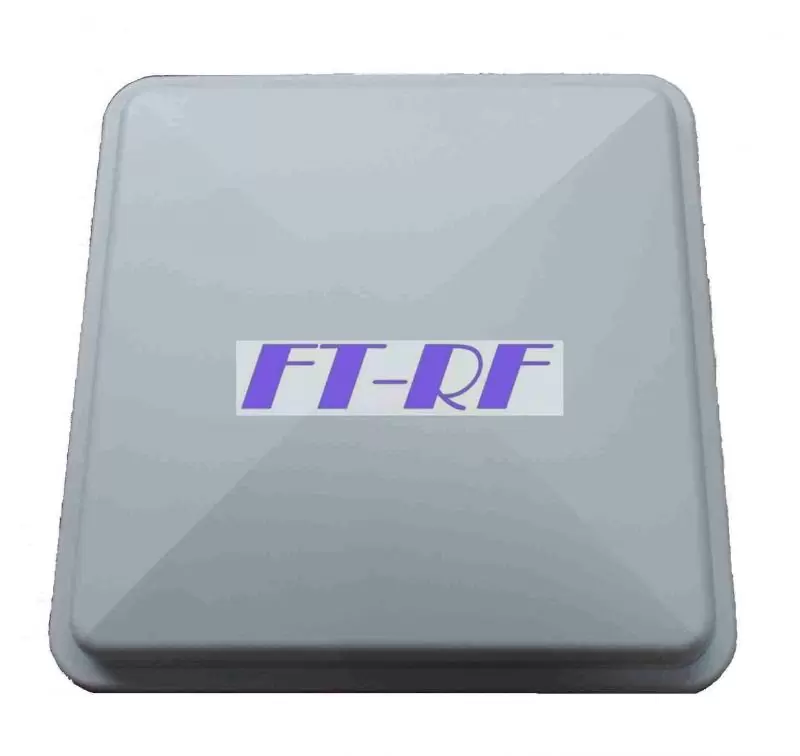

2.5GHz-2.7GHz 14dBi Panel Directional Outdoor Antenna2.5GHz-2.7GHz 14dBi Panel Directional Outdoor Antenna2.5GHz-2.7GHz 14dBi Panel Directional Outdoor Antenna

Model No: PA-252714-NF

  • Dimensions: L230xW230xD25mm
  • Weight: 340g
  • Connector: N-Female
  • Beam-width: Horz.33 Deg Vert.30 Deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz Band

  • IEEE 802.16 System

  • 14dBi Directional Multipoint applications

  • Point to Point Bridge

  • Public Wireless
  • WiMAX,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

14 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

30 Deg

Horizontal Beam-width

33 Deg

FBR Greater than 21 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female



Length x Width(MAX)

230 x 230mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

340 g

Accessories (G.W)

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

 RoHS, CE, FCC, WEEE
