Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.5GHz-2.7GHz Band
-
IEEE 802.16,802.20
-
18dBi Directional Multipoint applications
-
Point to Point Bridge
- Pubic Wireless
-
WiMAX,WLAN
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance designs
-
DC Short lightning protection
-
Outdoor antenna for public hotspots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
2500MHz - 2700MHz |
|---|---|
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain(MAX) |
19 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
17 Deg |
|
Horizontal Beam-width |
16 Deg |
| FBR | Greater than 26 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
16(4x4) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female |
|

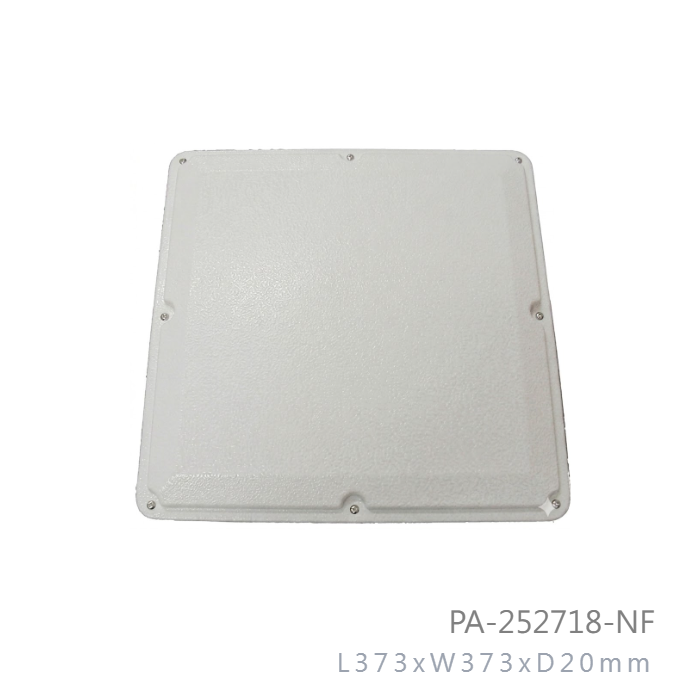

Length x Width(MAX) |
373 x 373mm |
|---|---|
|
Diameter (MAX) |
20mm |
|
Antenna Weight (G.W) |
1020 g |
|
Accessories (G.W) |
250 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS+UV |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel and Aluminum |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 120MPH |
| Storage Temperature | -20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
