Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.5GHz-2.7GHz Band ,2.6GHz Band
-
IEEE 802.11x Wireless Lan
-
4dBi Omni Directional Multipoint applications
-
MMDS
-
Pubic Wireless Hotspot
-
WiMAX ,WiBro
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance design
-
DC Short lightning protection
-
Narrow base station descent
-
Behind and support are made of aluminum
-
Outdoor antenna for public hotspots
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
2500MHz - 2700MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain (MAX) |
4 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
50 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|

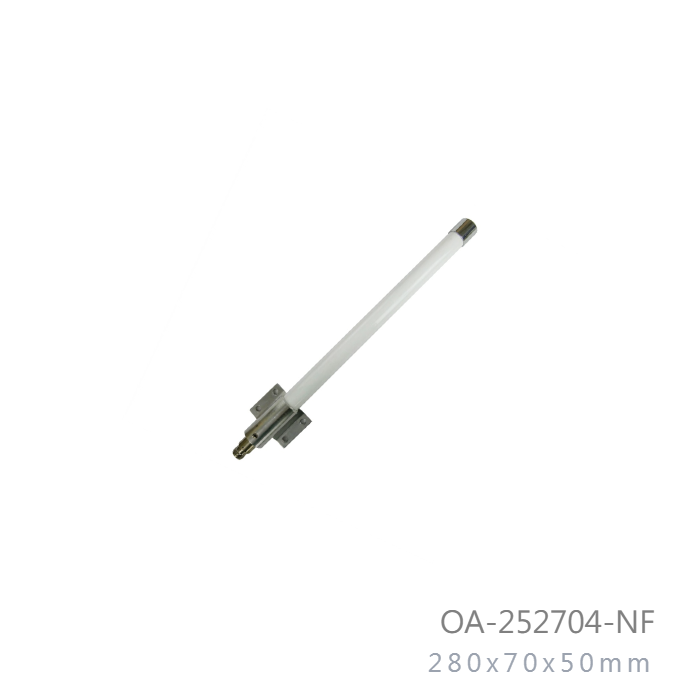

Length (MAX) |
280mm |
|---|---|
|
Diameter (MAX) |
70 x 55mm |
|
Antenna Weight (G.W) |
210 g |
|
Accessories (G.W) |
50 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Parts Material |
Aluminum |
| Mount Style | Pole Mount / Well Mount |
| 32 to 45mm Mounting | Stainless Steel U-Type Screw |
|
Wind Survival |
Greater then 180MPH |
|
Storage Temperature |
-40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
