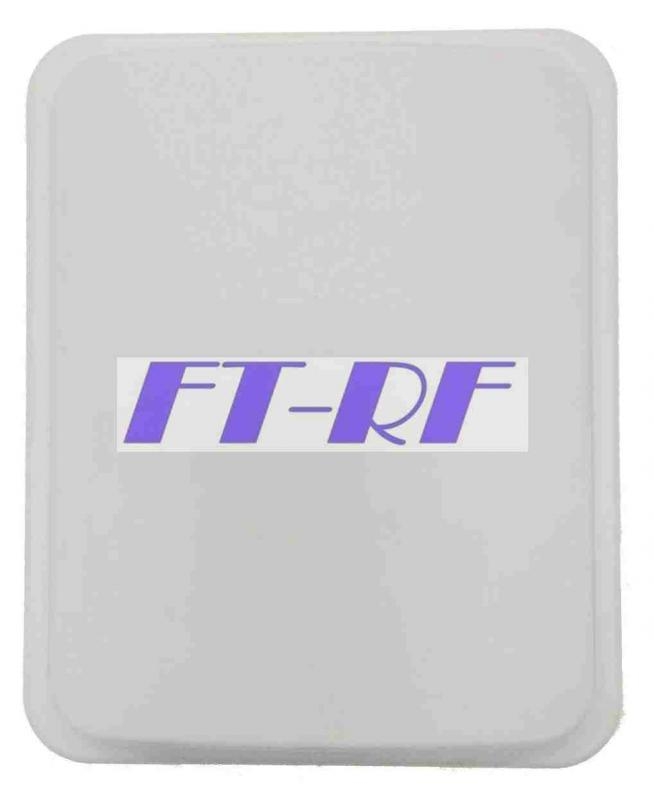

2.5GHz-2.7GHz 9.5dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.5GHz-2.7GHz 9.5dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna2.5GHz-2.7GHz 9.5dBi Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

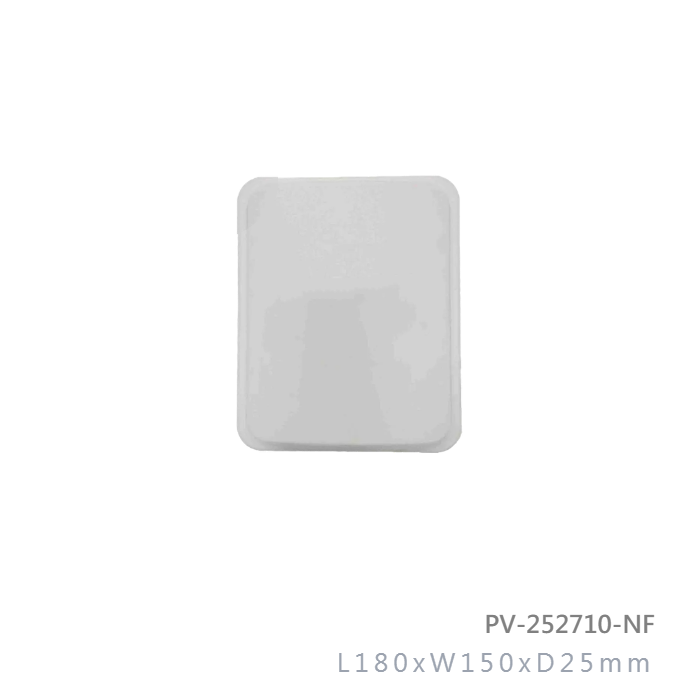

Model No: PV-252710-NF

  • Dimension : L180xW150xD25mm
  • Weight : 0.65 KG
  • Connector : N-Female
  • Beam-width :Horz.Port1: 32 Deg / Port2: 40 Deg
  • Beam-width :Vert.Port1: 30 Deg / Port2: 38 Deg
INQUIRY

Applications:

  • 2.5GHz-2.7GHz Band

  • IEEE 802.16x,802.20x, Wireless Lan

  • Directional Multipoint applications 2 x 2 TX/RX

  • MIMO 2x2 Dual Port 9.5dBi

  • Public Wireless Point to Point

  • WiMAX,WiBro

  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight (UV ABS)
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets
  • IP65 Waterproof rating
  • RoHS Compliant

Frequency Range

2500MHz - 2700MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

9.5 dBi

Polarization

Dual Vertical and Horizontal

Maximum Power

5 Watts

Vertical Beam-width

Port1: 32 Deg / Port2: 40 Deg

Horizontal Beam-width

Port1: 30 Deg / Port2:38 Deg

FBR Greater than 15 dB
Cross Polarization Greater than -18 dB

Impedance

50 Ohm

Antenna Design

2(1x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female x 2

Length x Width(MAX)

180 x 150mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

400 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
