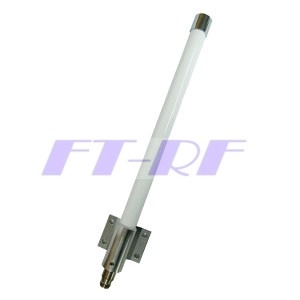

4.4 to 5GHz 6dbi Omni Outdoor Antenna4.4 to 5GHz 6dbi Omni Outdoor Antenna4.4 to 5GHz 6dbi Omni Outdoor Antenna

Model No: OA-445006-NF

  • Dimensions: 270x70x50mm
  • Weight: 290g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.21 deg
INQUIRY

Applications:

  • 4.4GHz - 5GHz Band

  • 6 dBi Omni Directional Multipoint applications

  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Antenna support is easily adjusted up and down

  • Behind and support are made of aluminum

  • Outdoor antenna for public spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

4400MHz - 5000MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain(Avg)

6 dBi

Polarization

Vertical or Horizontal

Maximum Power

100 Watts

Vertical Beam-width

21 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female



Length (MAX)

270 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

290 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style Pole Mount / Well Mount

Parts Material

Aluminum

Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, ISO
