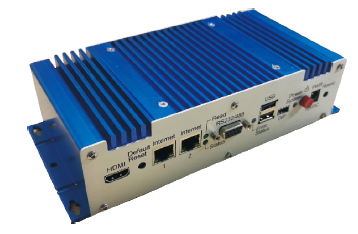

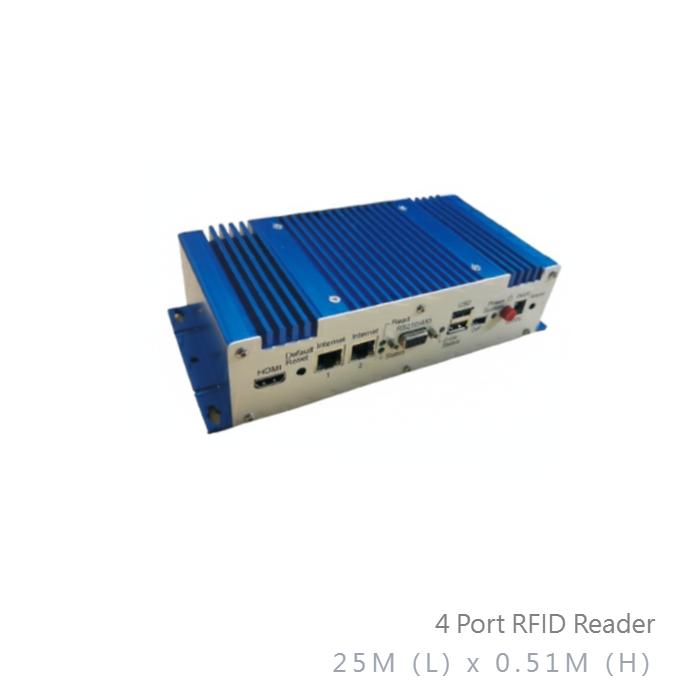

4 Port RFID Reader

Model No: 4 Port RFID Reader

  • Memory: 2G DDR 16G EMMC
  • Dimension: 225x125x55 mm
  • Switch: Power / Control / Reset / Reset to default
  • LED: Indicate the Multi System Status/power / Reader status
INQUIRY
  • 4 ports, RFID tag, and Controller System
  • Interface: Ethernet/ RS485
  • OS: Embedded Linux / Support Free SDK: web API / Setting and upgrade: web browser
  • Auto Port Configure sets available
  • EPC C1G2 / IOS1800-6C
  • RFID Output Power 27dBm / 0.5W ̣(Software Tunning up to 30dbm/1W) / with 9dBi Antenna EIRP up to 4.8W
  • NCC / FCC Part 15 /  TCB Certificate.
  • Integrated with PA-915M09-NF Antenna, provided the optimal of RF field adjustment.
  • Processor: Broadcom BCM2711 quad-core Cortex-72 (ARM 8) 64-bit Soc @1.5GHz
  • UID setting by DIP Switch / Web browser Software setting
  • 2 x DO (Dry Contact)
  • 2 x DI (Dry contact input x 1 & 12VDC wet contact type x 1)
  • 2 x 1EEE 802.3 Ethernet port
  • 922~928MHz UHF operation and EPCC1G2 complies
  • Typical 62.5Kbps datarate
  • 500KHz Channel spacing
  • 12 Channel hopping channel
  • Up to 4 port UHF Antenna RPTNC Connecter
  • 10ppm frequency stability
  • Operating Temperature: 0 to +55 Degrees C
  • Storage Temperature: -10 to +65 Degree C
  • Reception Sensitivity -Mono-Static: -77dBm
  • Reception Sensitivity -Bio-Static: -88dBm
