Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
5.15GHz-5.875GHz Band
-
IEEE 802.11 System
-

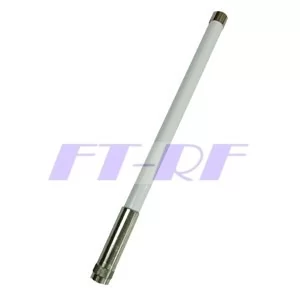

10dBi Mini Omni Directional Multipoint applications
-
Point to Point Bridge / MMDS / Hotspot
-
Public Wireless
-
WiMAX,WLAN,WiFi,802.11a
-
Wireless Video Systems
Features:
-
Superior Performance
-
Lightweight
-
Good appearance design
-
DC Short lightning protection
-
Narrow base station descent
-
Behind and support is an aluminum
-
Outdoor antenna for public
-
Includes tilt and swivel mast mount brackets
-
RoHS Compliant
|
Frequency Range |
5125MHz - 5875MHz |
|
V.S.W.R (MAX) |
1.5 :1 |
|
Antenna Type |
Collinear |
|
Radiation |
Mini Omni Directional |
|
Gain |
10 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
100 Watts |
|
Vertical Beam-width |
11 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|
Length (MAX) |
410 mm |
|
Diameter (MAX) |
17 mm |
|
Antenna Weight (G.W) |
230 g |
|
Accessories (G.W) |
0.01 g |
|
Application |
Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Mount Style |
No |
|
Parts Material |
Aluminum or Copper |
|
Mounting |
Optional |
|
Wind Survival |
Greater than 180MPH |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +60 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
WEEE, CE, FCC, RoHS |
