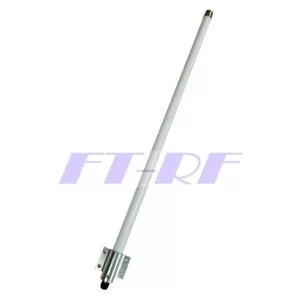

5.425 GHz to 5.875 GHz 8dbi Omni Directional Outdoor Antenna

Model No: OA-545908-NF

  • Dimensions: 345x70x50mm
  • Weight: 410g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.11 deg
INQUIRY

Applications:

  • 5.45GHz-5.875GHz Band

  • IEEE 802.11 System

  • Directional Multipoint applications

  • Point to Point Bridge / MMDS / Hotspot

  • Public Wireless

  • WiMAX,WLAN,WiFi,802.11a

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Antenna support is easily adjusted up and down

  • Behind and support are made of aluminum

  • Outdoor antenna for public spots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

5425MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain

8 dBi

Polarization

Vertical or Horizontal

Maximum Power

100 Watts

Vertical Beam-width

11 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

345 mm

Diameter

70 x 50mm

Antenna Weight

340 g

Accessories

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style Pole Mount / Well Mount

Parts Material

Aluminum

Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, WEEE, FCC
