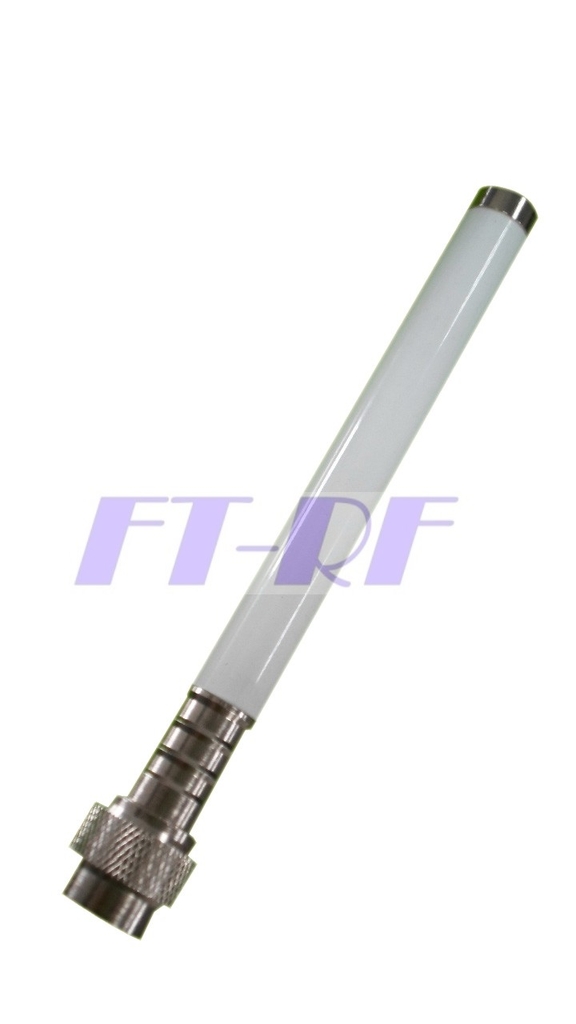

824 to 960MHz/ 1710 to 2170MHz 2dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)824 to 960MHz/ 1710 to 2170MHz 2dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)824 to 960MHz/ 1710 to 2170MHz 2dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)

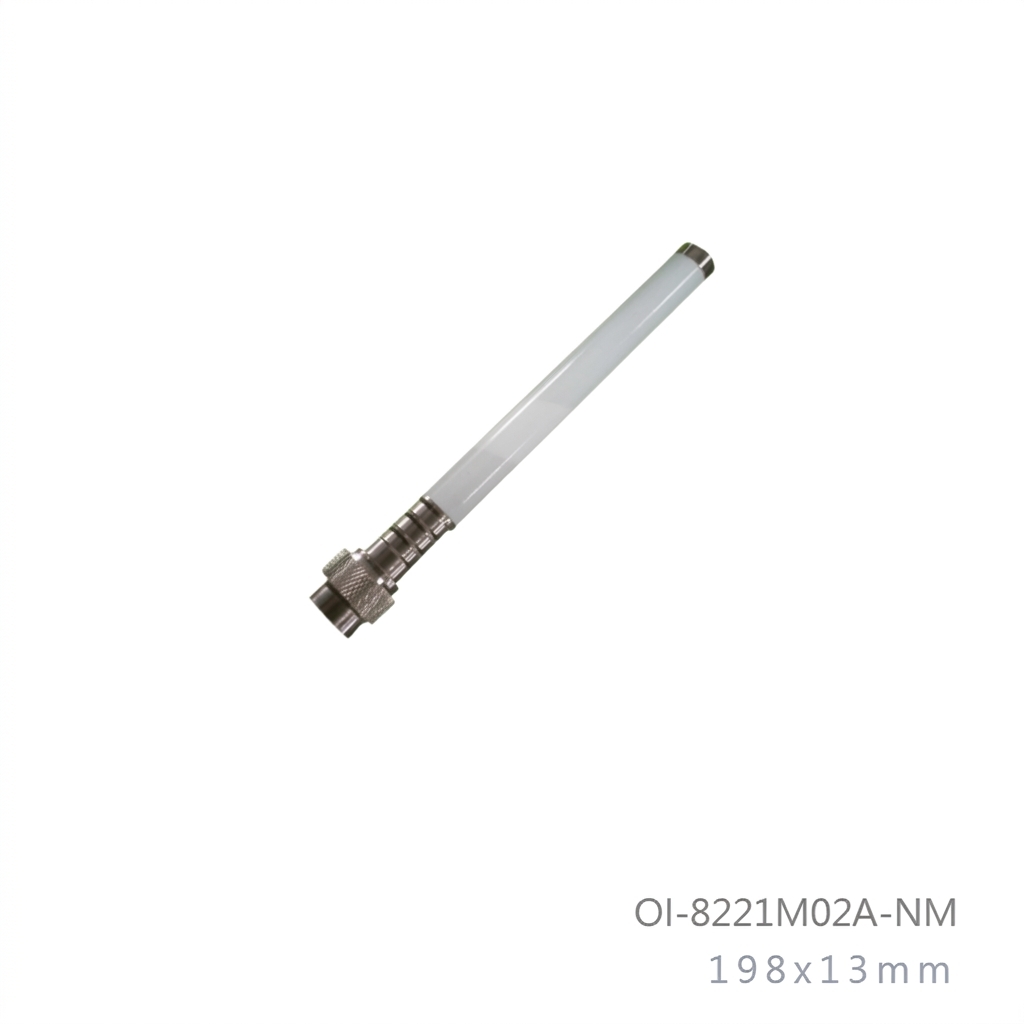

Model No: OI-8221M02A-NM

Datasheet:Download

  • Dimension: 198x13mm
  • Weight: 72g
  • Connector: N-Male
  • Beam-width : Horz.360Deg;
  • Vert. 824-960MHz: 29 Deg, 1710-2170Mhz: 26 Deg
INQUIRY

Applications:

  • Outdoor antenna with 824 to 960MHz / 1710 to 2050MHz Band
  • Directional and multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • AWS and PCS band, ETC
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • All-weather operation
  • Installed for vertical

Frequency Range

824MHz to 960MHz

1710MHz to 2170MHz

V.S.W.R (Avg)

3.0 :1

Antenna Type

Co-linear Dipole

Radiation

Omni Directional

Gain (Avg)

2 dBi

Polarization

Vertical

Maximum Power

10 Watts

Vertical Beam-width

824-960MHz: 29 Deg

1710-2170Mhz: 26 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Copper Dipole

Internal Material

Copper

Connector

N-Male


Length (MAX)

198 mm

Diameter (MAX)

13 mm

Antenna Weight (G.W)

72 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Base Material

Copper with nickel-plated

Wind Survival

Greater than 250KM/HR

Storage Temperature

-40 to +120

Operating Temperature

-20 to +80

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
