824 MHz To 896 MHz Omni Directional Antenna

OA-868M03-NF

868MHz 3dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 320x70x50mm
  • Weight : 330g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.75 deg
View Details
OA-868M04-NF

868 MHz to 870 Mhz 4dBi Omnidirectional Outdoor Antenna (EU868)

  • Dimension : 840x70x55mm
  • Weight : 420g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.27 deg
View Details
OA-868M05-NF

868 MHz LoRa Antenna 5dBi (LoRa EU868)

  • Dimension: 1094x70x50mm
  • Weight : 654.7g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.16 deg
View Details
OA-868M05C-NF

860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868)

  • Dimension : 745x70x50mm
  • Weight : 392g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.26 deg
View Details
OA-868M06C-NF

860 MHz to 870 MHz 6dBi Omni Directional Antenna Spring designed (EU868)

  • Dimension : 1095x70x55mm
  • Weight : 481g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.20 deg
View Details
OA-868M06-NF

868 MHz 6dBi Omni Directional Outdoor Antenna (EU868)

  • Dimension : 1095x70x50mm
  • Weight : 586g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details
OA-868M07-NF

868MHz 7dBi Omni Directional Outdoor Antenna (EU868)

  • Model : OA-868M07-NF
  • Dimension : 1500x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.11 deg
View Details
OA-868M07C-NF

860 MHz to 870 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (EU868) N-Female

  • Dimension : 1235x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert. deg
View Details

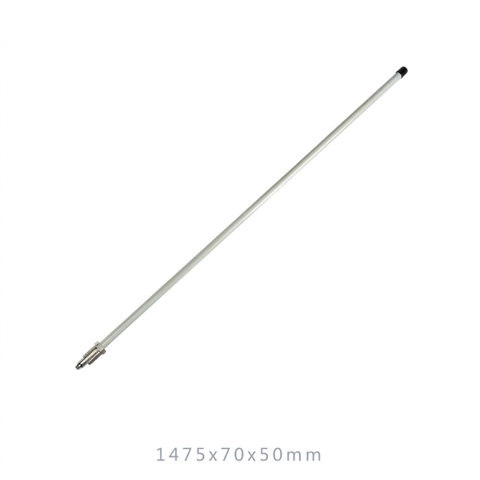

OA-868M08-NF

868 MHz LoRa Antenna 8dBi (LoRa EU868)

  • Dimension : 1475x70x50mm
  • Weight : 1070g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
View Details

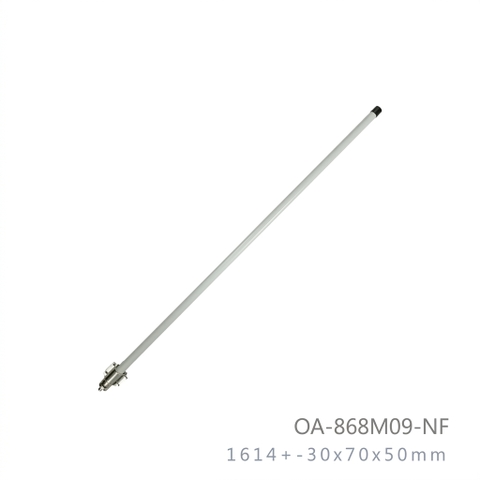

OA-868M09-NF

860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna

  • Dimension : 1750x70x50mm (Update Version)
  • Weight : 800g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details

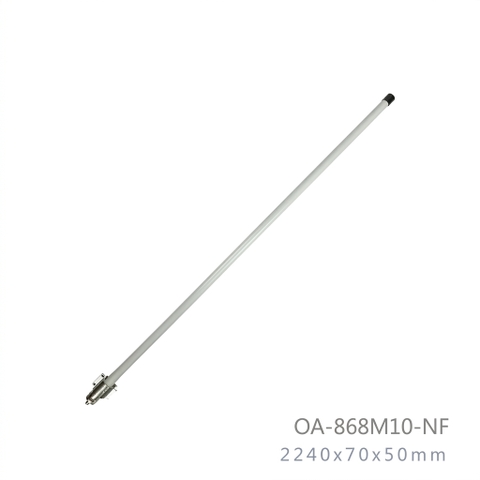

OA-868M10-NF

860 MHz to 870 MHz 10dBi Omni Directional Outdoor Antenna

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
View Details
OA-868M12-NF

860MHz-870MHz 12dBi Omni Directional Outdoor Antenna (LoRa Antenna)

  • Dimension : 2240x70x50mm
  • Weight : 994g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.8 deg
View Details
