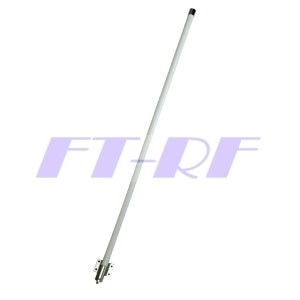

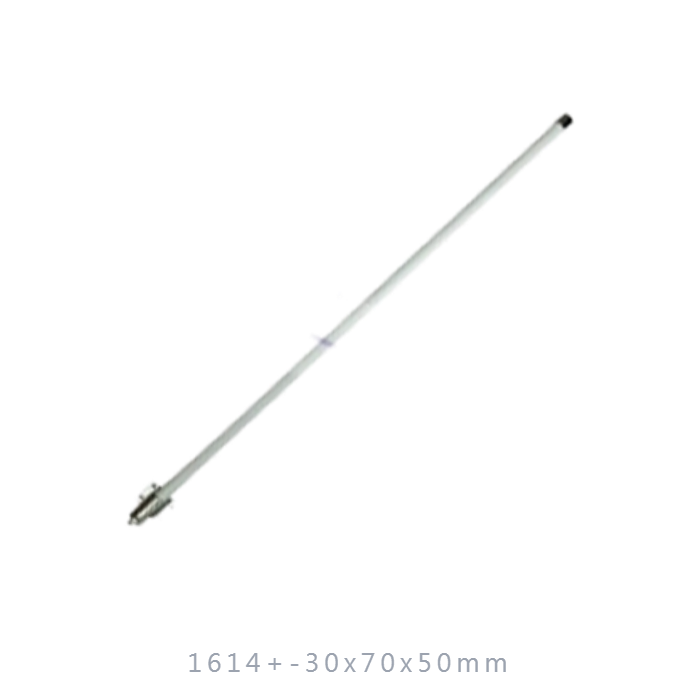

860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna860 MHz to 870 MHz 9dBi Omni Directional Outdoor Antenna

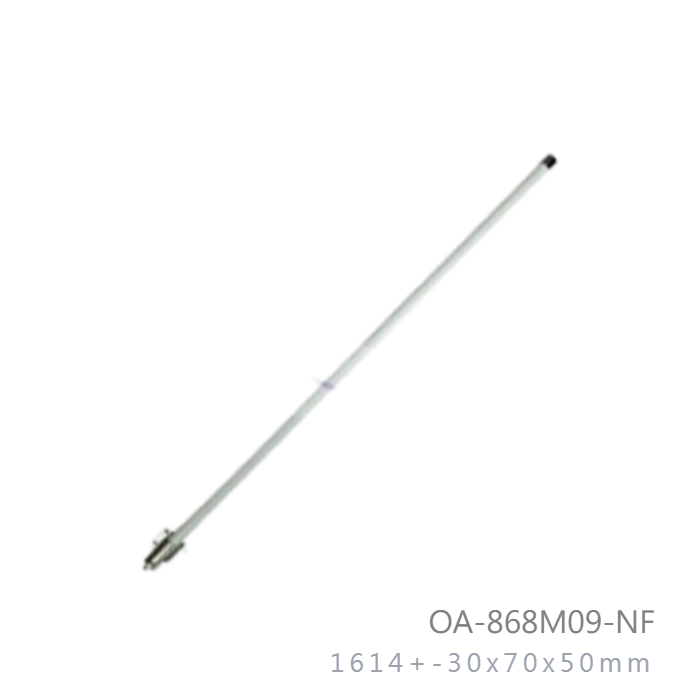

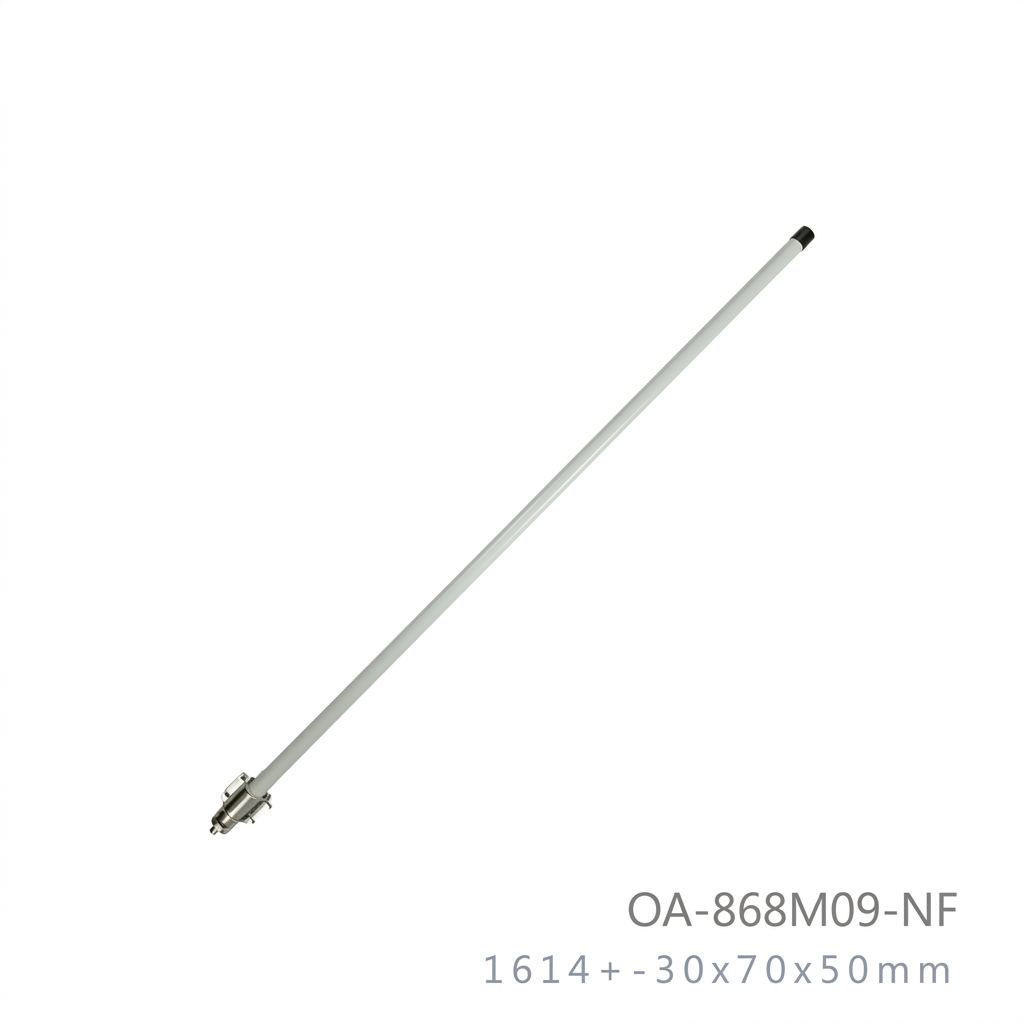

Model No: OA-868M09-NF

Datasheet:Download

  • Dimension : 1750x70x50mm (Update Version)
  • Weight : 800g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.17 deg
INQUIRY

Applications:

  • 860MHz to 870MHz Band (LoRa EU868)
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

860MHz to 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

9 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

17 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

1475+/-5 mm

Diameter

70 x 50mm

Antenna Weight

800 g

Accessories

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety,Emission and other

 RoHS
