Applications and Features
-
Electrical Specs
-
Mechanical Specs
Applications:
- 860MHz to 870MHz Band (EU868)

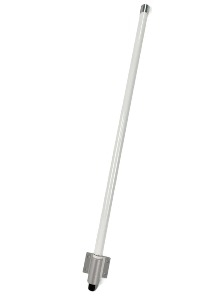

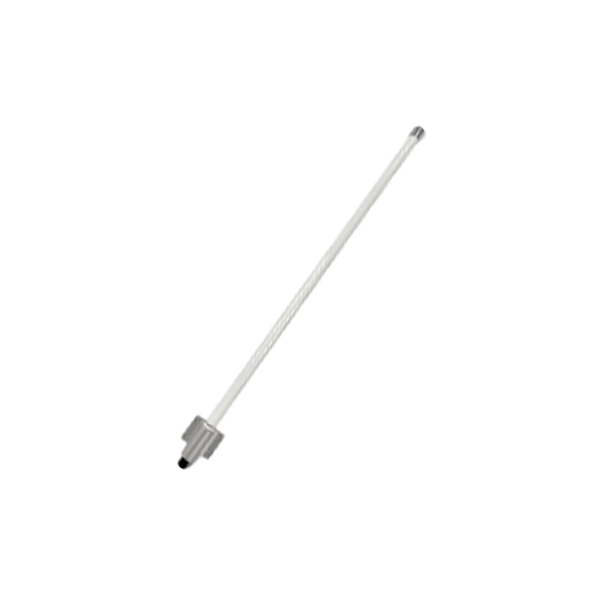

- 868 MHz LoRa Antenna 5dBi (LoRa EU868)
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
|
Frequency Range |
860MHz to 870MHz |
|---|---|
|
V.S.W.R (MAX) |
868MHz: 1.5 :1 860MHz and 870MHz: <2.0 |
|
Antenna Type |
Collinear |
| Radiation | Omni Directional |
|
Gain (MAX) |
5 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
100 Watts |
|
Vertical Beam-width |
16 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole Array |
|
Internal Material |
Copper |
|
Connector |
N-Female |
|

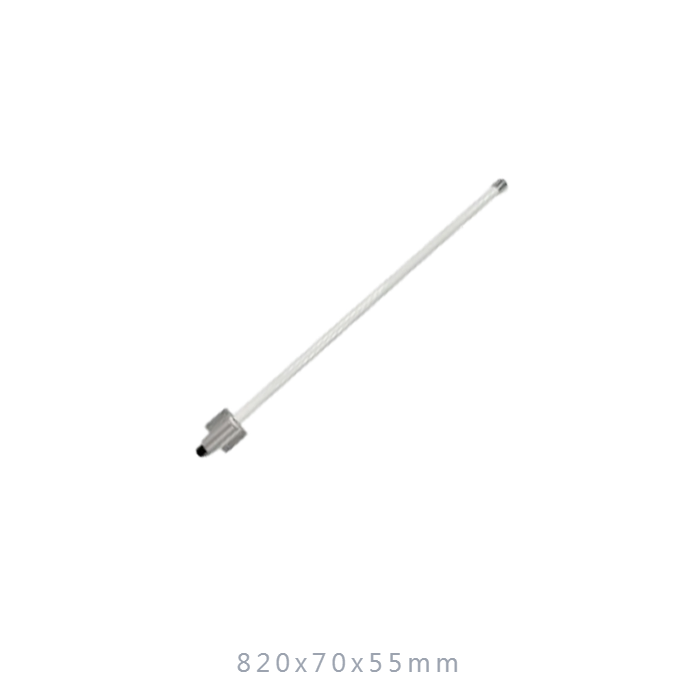

Length (MAX) |
820x70x55mm |
|---|---|
|
Diameter |
70 x 55mm |
|
Antenna Weight (N.W) |
654.7 g |
|
Accessories (N.W) |
70 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White Fiberglass |
|
Parts Material |
Aluminum |
| Mount Style | Pole Mount / Wall Mount |
| Mounting | Stainless Steel |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~80% non-condensing |
| Storage Humidity | 5%~80% non-condensing |
|
Safety, Emission and other |
RoHS |
