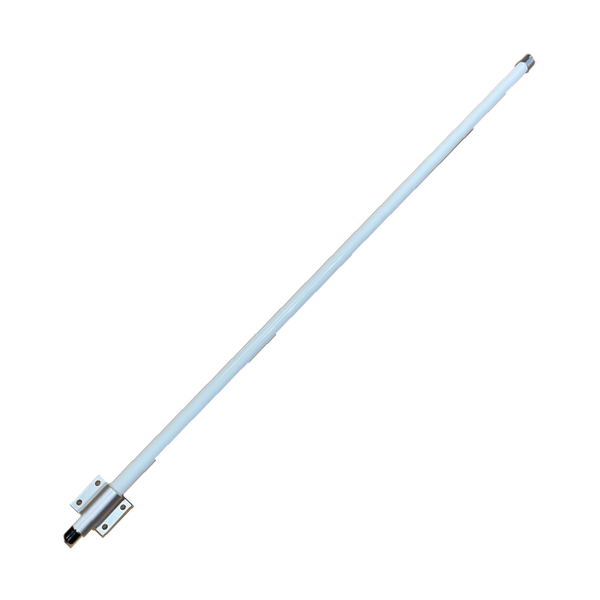

868MHz 7dBi Omni Directional Outdoor Antenna (EU868)868MHz 7dBi Omni Directional Outdoor Antenna (EU868)868MHz 7dBi Omni Directional Outdoor Antenna (EU868)

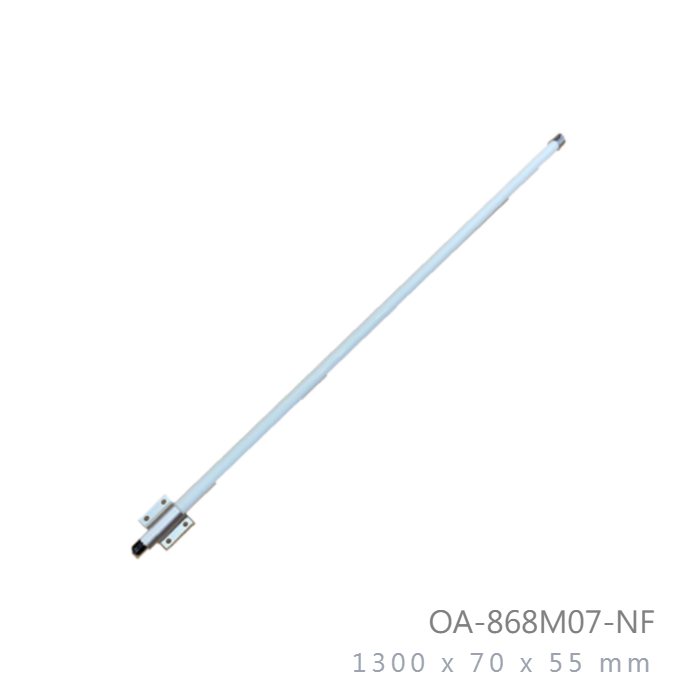

Model No: OA-868M07-NF

Datasheet:Download

  • Model : OA-868M07-NF
  • Dimension : 1500x70x55mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.11 deg
INQUIRY

Applications:

  • 824MHz to 896MHz Band
  • EU868 LoRa
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Aluminum mounting brackets
  • Outdoor antenna for public
  • RoHS Compliant

Frequency Range

860MHz to 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

11 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

1500+/-5 mm

Diameter

70 x 55mm

Antenna Weight

780 g

Accessories

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity 5%~80% non-condensing

Safety, Emission and other

RoHS
