APPLICATIONS & FEARURES
-
ELECTRICAL SPECIFICATION
-
MECHANICAL SPECIFICATIONS
Applications:
- 902MHz to 928MHz
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Outdoor antenna for public
- Includes tilt and swivel mast mount brackets
- RoHS Compliant
| Frequency Range | 902MHz – 928MHz |
| V.S.W.R (Avg) | 1:2.5 |
| Antenna Type | PIFA |
| Radiation | Omni Directional |
| Gain (MAX) | 5dBi |
| Polarization | Vertical |
| Maximum Power | 500 Watts |
| Impedance | 50 Ohm |
| Antenna Design | High quality PIFA |
| Connector | SMA-Female |

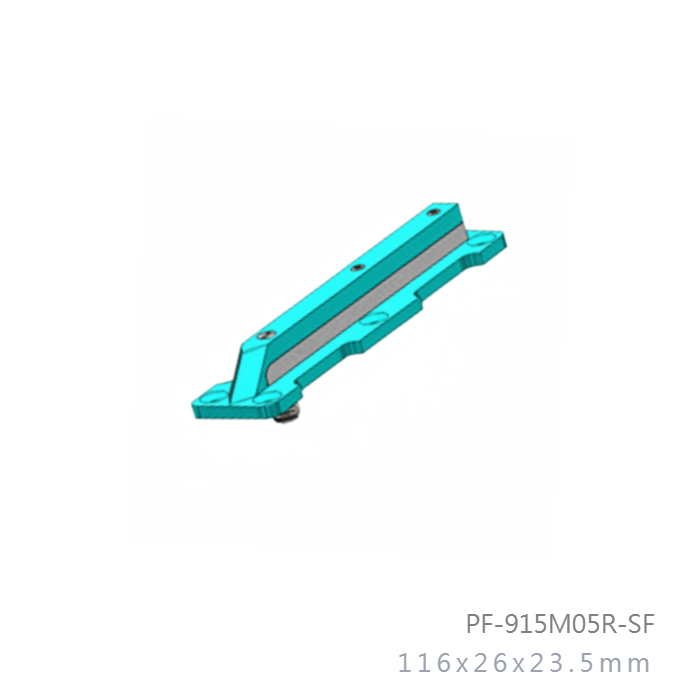

| Length | 116mm |
| Width x Height | 26x23.5mm |
| Application | Indoor/Outdoor |
| Mount Style | Aliminum |
| Parts Material | Stainless steel screws |
| Mounting | Stainless Steel |
| Wind Survival | No |
| Storage Temperature | N/A |
| Operating Temperature | -40 to +80 |
| Operating Humidity | -40 to +60 |
| Storage Humidity | 10%~90% non-condesing |
| Safety, Emission and other | 5%~90% non-condensing |
