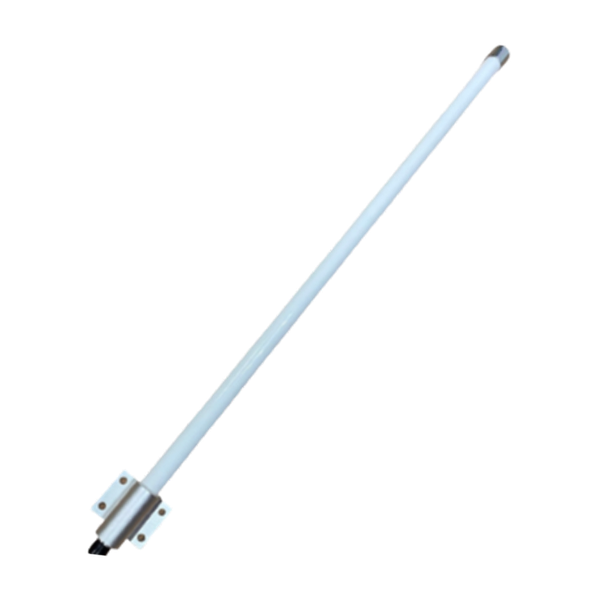

915MHz 6dBi Omni Directional Outdoor Antenna Spring Designed (US915) N-Female

Model No: OA-915M06C-NF

Datasheet:Download

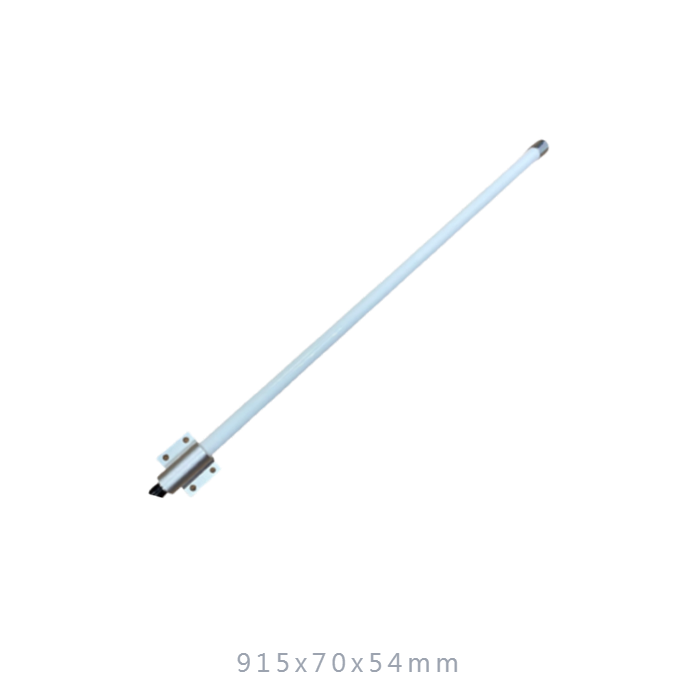

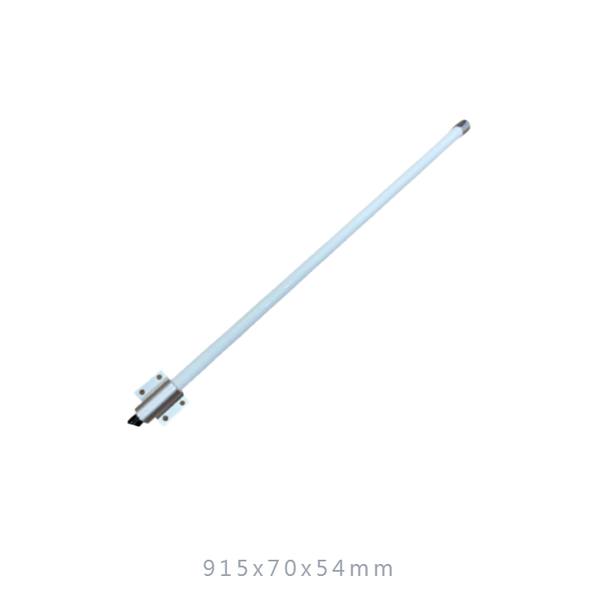

  • Dimension: 915x70x54mm
  • Weight: 0.53 KG
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.23 deg
INQUIRY

Applications:

  • 915MHz 6dBi Omni Directional Outdoor Antenna Spring Designed (US915) N-Female
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz to 928MHz

V.S.W.R

(AVG) 2:1

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

23 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

865+/-30 mm

Diameter

70 x 54mm

Antenna Weight

 523 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
