Applications:

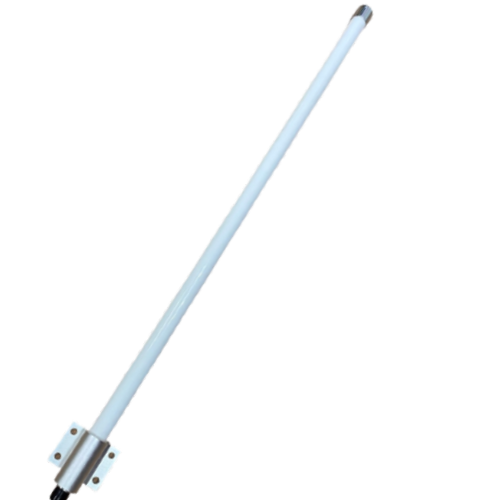

- 915MHz 6dBi Omni Directional Outdoor Antenna Spring Designed (US915)
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
Frequency Range | 902MHz to 928MHz |
V.S.W.R | (AVG) 2:1 |
Antenna Type | Collinear |
Radiation | Omni Directional |
Gain (MAX) | 6 dBi |
Polarization | Vertical |
Maximum Power | 50 Watts |
Vertical Beam-width | 23 Deg |
Horizontal Beam-width | 360 Deg |
Impedance | 50 Ohm |
Antenna Design | Dipole Array |
Internal Material | Copper |
Connector | N-Female |
Length | 865+/-30 mm |
Diameter | 70 x 54mm |
Antenna Weight | 523 g |
Accessories | 70 g |
Application | Indoor / Outdoor |
Radome Material | White Fiberglass |
Parts Material | Aluminum |
Mount Style | Pole Mount / Wall Mount |
Mounting | Stainless Steel |
Wind Survival | Greater than 150MPH |
Storage Temperature | -20 to +80 |
Operating Temperature | -20 to +60 |
Operating Humidity | 10%~80% non-condensing |
Storage Humidity | 5%~80% non-condensing |
Safety, Emission and other | CE, FCC, RoHS |
