Precision Interconnect Solutions
High-Precision RF Coaxial Adapters Series
Professional grade N and SMA series coaxial adapters engineered for superior mechanical stability and signal integrity. Optimized for laboratory testing, telecommunications infrastructure, and high-frequency microwave systems.
Model Selection & Specifications
| Model No. | Description | Frequency Range |
|---|---|---|

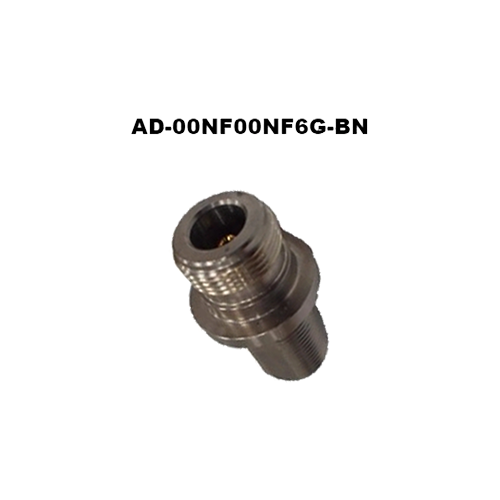

| AD-00NF00NF6G-BN | N-Female to N-Female Bulkhead Adapter | DC – 6 GHz |

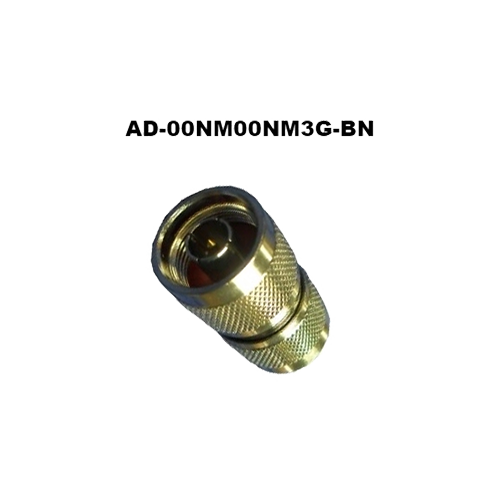

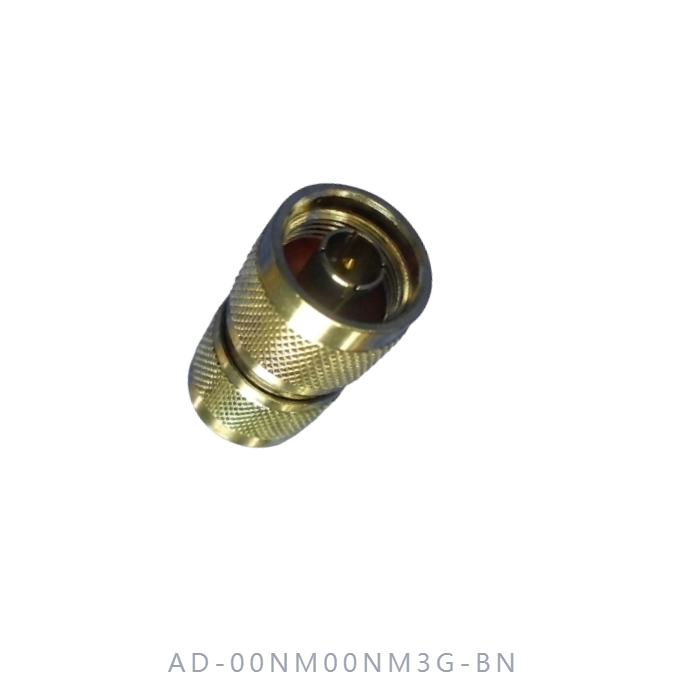

| AD-00NM00NM3G-BN | N-Male to N-Male Adapter | DC – 3 GHz |

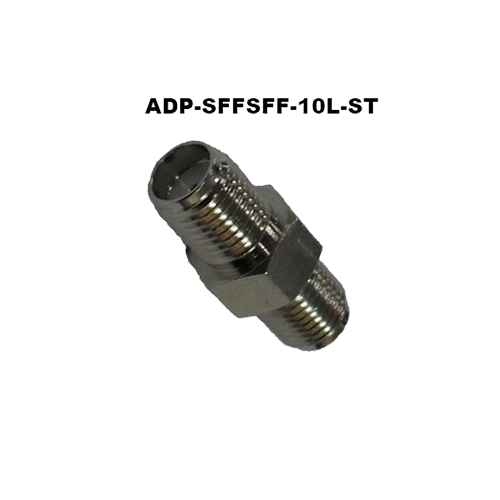

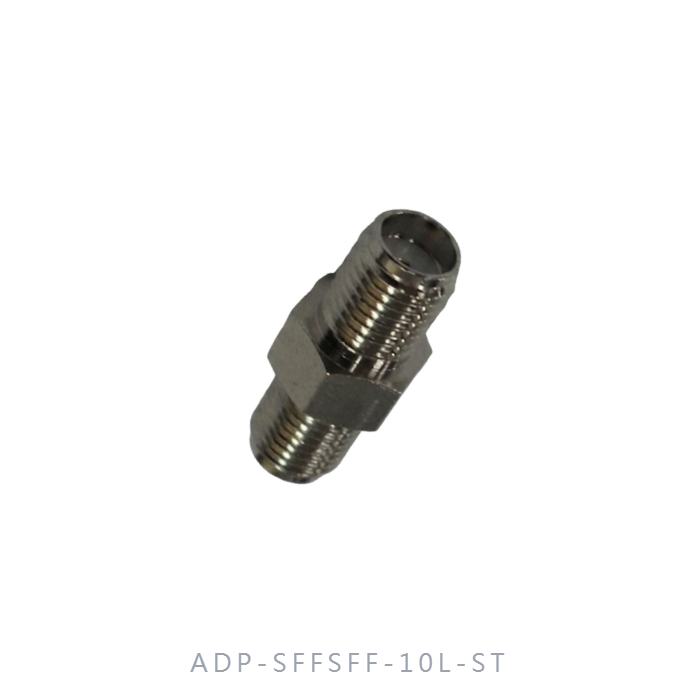

| ADP-SFFSFF-10L-ST | Stainless Steel SMA-Female to SMA-Female Lock Adapter | DC – 10 GHz |

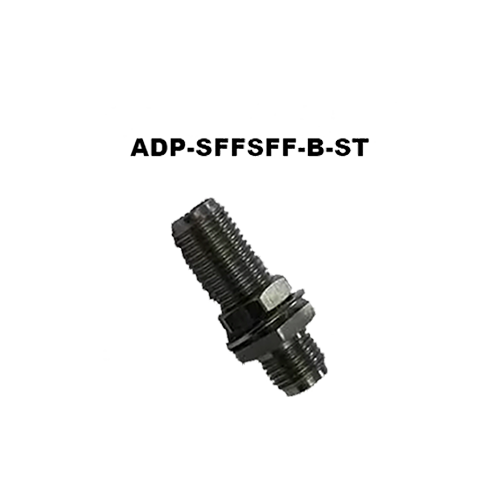

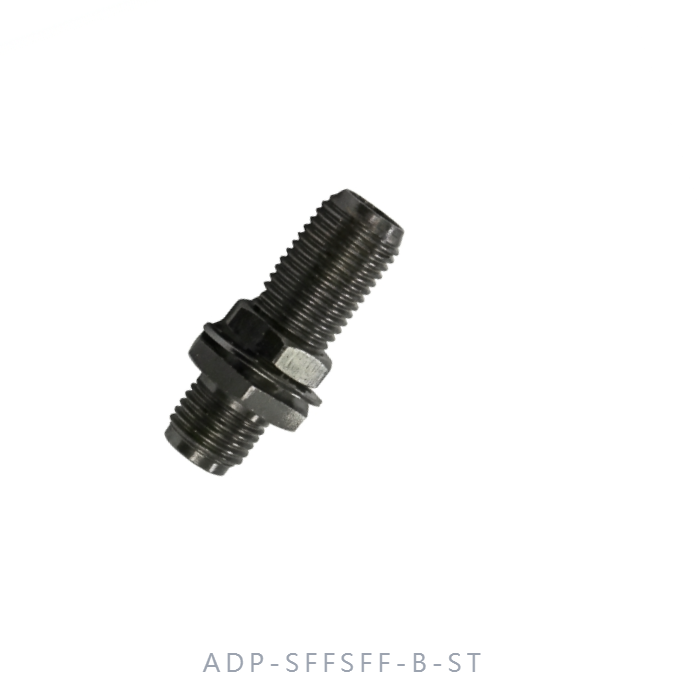

| ADP-SFFSFF-B-ST | Stainless Steel SMA-Female to SMA-Female Bulkhead Adapter | DC – 18 GHz |

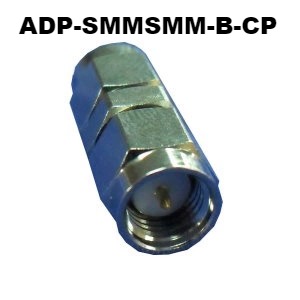

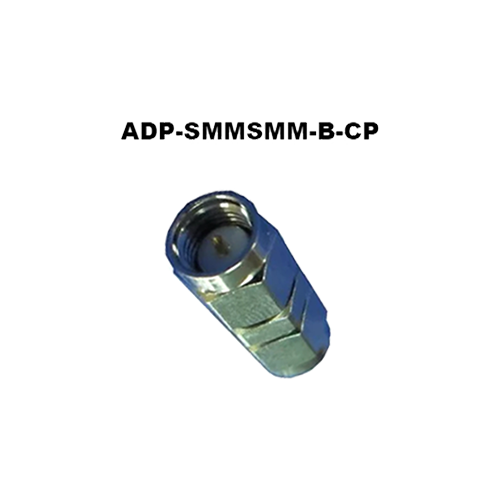

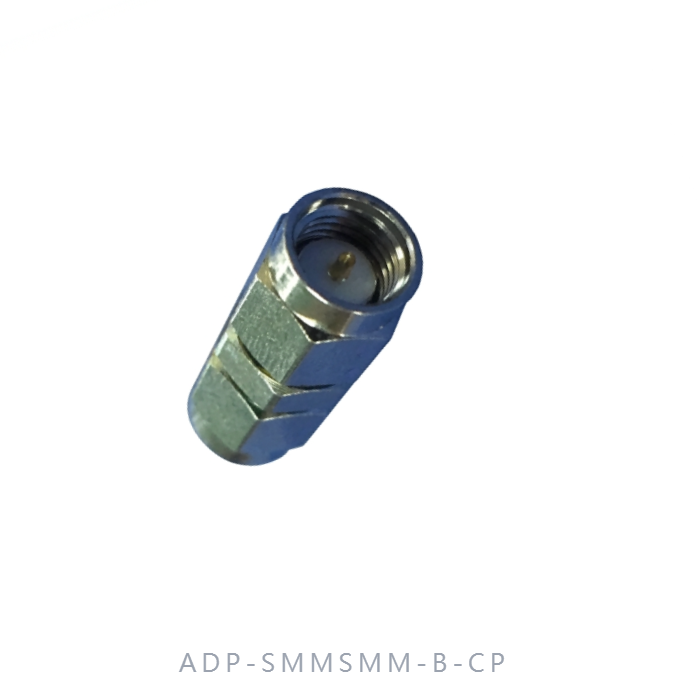

| ADP-SMMSMM-B-CP | SMA-Male to SMA-Male Adapter | DC – 18 GHz |
General Specifications
| Impedance | 50 Ohm |
| Material Construction | Passivated Stainless Steel / Nickel-Plated Brass |
| Performance Metric | Ultra-Low Insertion Loss & High VSWR Stability |
| Origin | Designed and Manufactured in Taiwan |
Engineering Core Features
High-Frequency Precision
Precision-machined interfaces support frequencies up to 18 GHz, maintaining excellent phase stability and signal accuracy for critical microwave links.
Robust Mechanical Build
Constructed with premium passivated stainless steel or high-grade brass, ensuring over 500 mating cycles and resistance to industrial environmental stress.
Versatile Mounting Options
Features bulkhead and locking configurations, allowing for secure panel-mount integration and high-retention connectivity in high-vibration systems.
Global Compliance Quality
Strict impedance matching minimizes return loss, providing a standardized high-performance solution for laboratory measurements and 5G infrastructure.
