Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
- 1850MHz - 1990MHz Band
- IEEE 802.22 WRAN
- Point to Point Bridge
- Multipoint Application
- Bluetooth
- Public Wireless Hotspot
- Wireless Video Systems
Features:
- Superior performance
- Lightweight
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public hotspots
- Includes tilt and swivel mast mounting kit
- RoHS Compliant

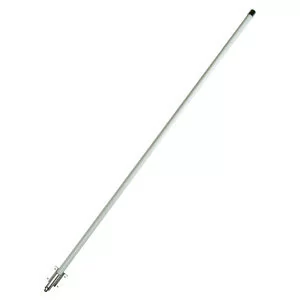

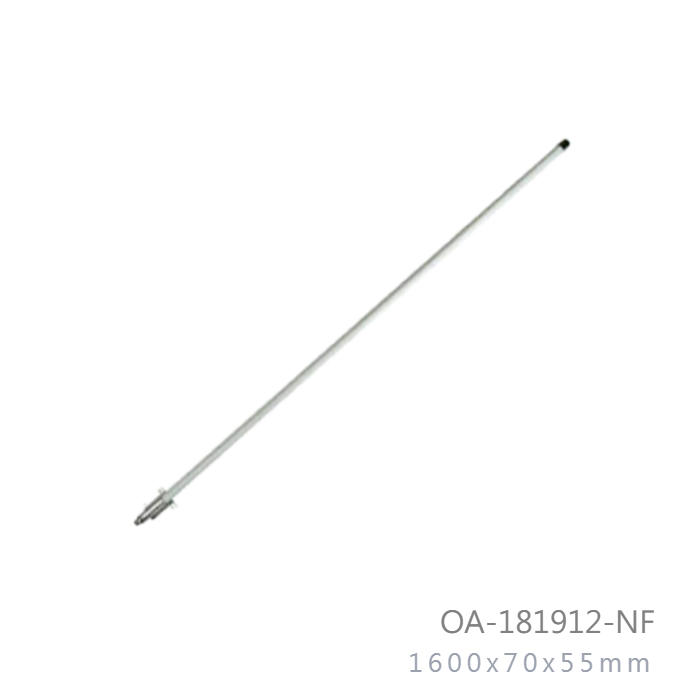

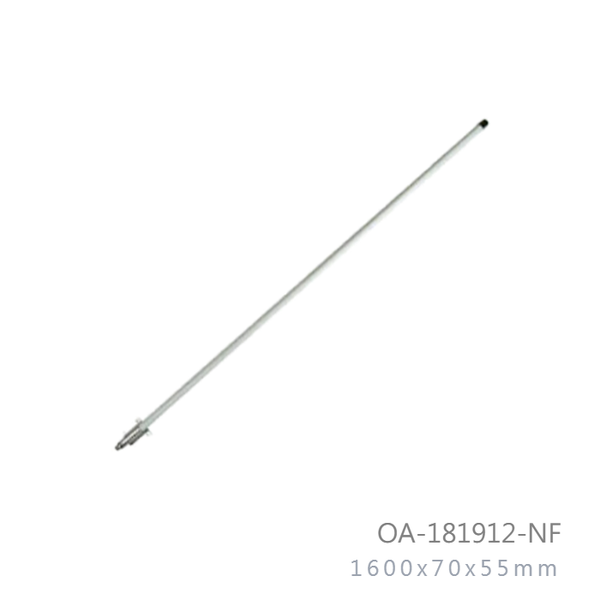

Frequency Range | 1850MHz - 1990MHz |
|---|---|
V.S.W.R (MAX) | 1.3 :1 |
Antenna Type | Collinear |
| Radiation | Omni Directional |
Gain (MAX) | 12 dBi |
Polarization | Vertical |
Maximum Power | 50 Watts |
Vertical Beam-width | 6 Deg |
Horizontal Beam-width | 360 Deg |
Impedance | 50 Ohm |
Antenna Design | Dipole Array Dipole |
Internal Material | Copper |
Connector | N-Female |
Length (MAX) | 1600 mm |
|---|---|
Diameter (MAX) | 70 x 55mm |
Antenna Weight (G.W) | 1200 g |
Accessories (G.W) | 70 g |
| Application | Indoor / Outdoor |
Radome Material | White Fiberglass |
Parts Material | Aluminum |
| Mount Style | Pole Mount / Well Mount |
| Pole Mounting | 32mm to 45mm |
| Mounting | Stainless Steel |
Wind Survival | Greater than 150MPH |
Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Safety, Emission and other | CE, FCC, RoHS |
