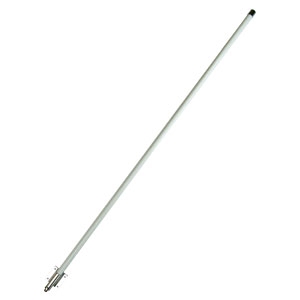

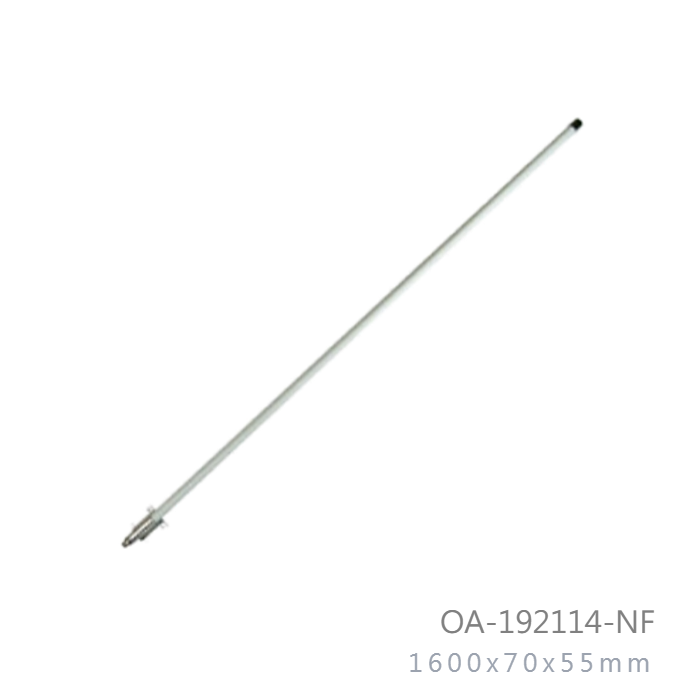

1.9GHz to 2.17GHz 13.5dBi Vertical Omni Directional Outdoor Antenna

Model No: OA-192114-NF

  • Gain : 13.5 dBi
  • Dimension : 1600x70x55mm
  • Weight : 1270g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.6 deg
INQUIRY

Applications:

  • 1990MHz - 2170MHz Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems


Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public hotspots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant



Model Gain (Max) Connector Dimension Weight
OA-192103-NF 3 dbi N-Female 230x70x55mm 230g
OA-192106-NF 6 dbi N-Female 550x70x55mm 470g
OA-192108-NF 8 dbi N-Female 650x70x55mm 520g
OA-192110-NF 10 dbi N-Female 1000x70x55mm 770g
OA-192112-NF 12 dbi N-Female 1250x70x55mm 870g
OA-192114-NF 14 dbi N-Female 1600x70x55mm 1270g

Frequency Range

1990MHz - 2170MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

13.5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

6 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1600 mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

1200 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Well Mount
Pole Mounting 32mm to 45mm
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
