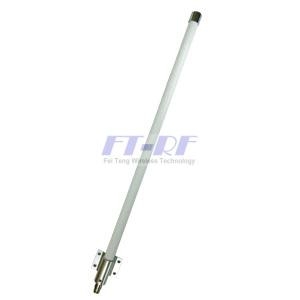

2.3GHz to 2.4GHz 10dBi Outdoor OMNI Directional Antenna2.3GHz to 2.4GHz 10dBi Outdoor OMNI Directional Antenna2.3GHz to 2.4GHz 10dBi Outdoor OMNI Directional Antenna

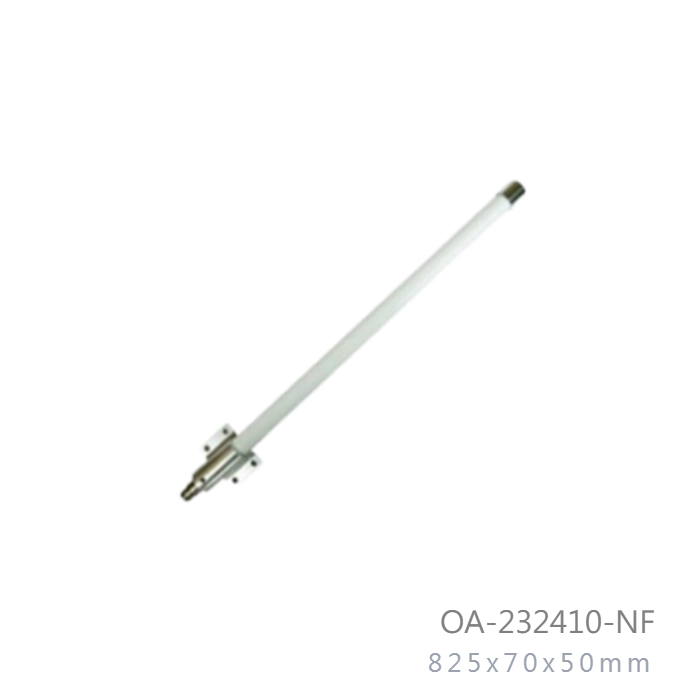

Model No: OA-232410-NF

  • Dimension : 825x70x50mm
  • Weight : 480g
  • Connector : N-Female
  • Beam-with : Horz.360 Deg Vert.10 Deg
INQUIRY

Applications:

  • 2300MHz to 2400MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

10 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-with

12 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

825 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

480 g

Accessories (G.W)

70g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS
