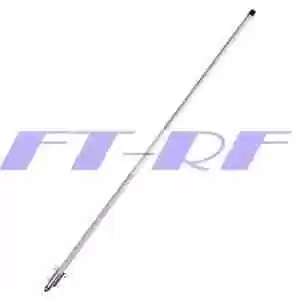

2.3GHz-2.4GHz 15dBi Outdoor OMNI Directional Antenna2.3GHz-2.4GHz 15dBi Outdoor OMNI Directional Antenna2.3GHz-2.4GHz 15dBi Outdoor OMNI Directional Antenna

Model No: OA-232415-NF

  • Dimension : 1480x70x83mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz.360 Deg Vert.6 Deg
INQUIRY

Applications:

  • 2.3GHz-2.4GHz Band
  • IEEE 802.11x Wireless Lan
  • 15dBi Omni Directional Multipoint applications
  • MMDS
  • Pubic Wireless Hotspot
  • WiMAX , WiBro
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Installed for Collinear Vertical Polarization
  • Behind and support is an aluminum
  • Outdoor antenna for public Hotspot
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

15 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

10 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1480 mm

Diameter (MAX)

70 x 83 mm

Antenna Weight (G.W)

700 g

Accessories (G.W)

80 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

 RoHS
