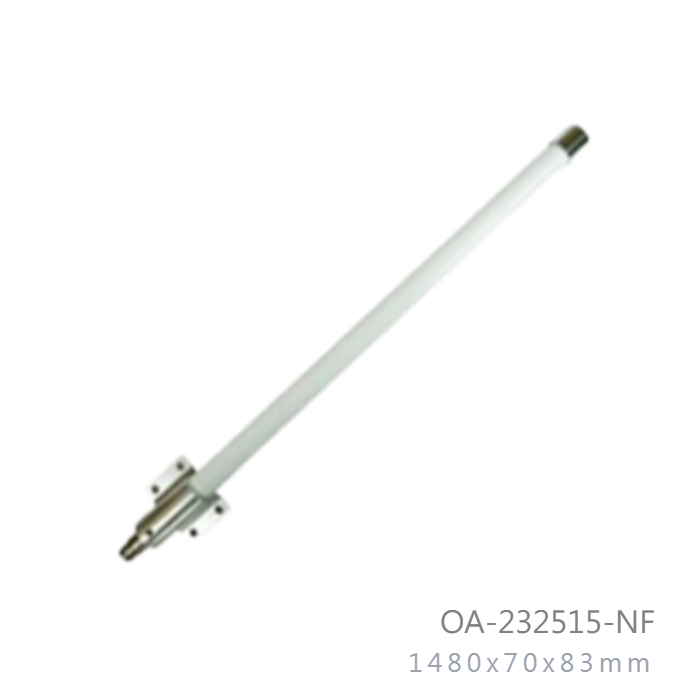

2.3GHz to 2.5GHz 15dBi Omni-Directional Outdoor Antenna

Model No: OA-232515-NF

  • Dimension : 1480x70x83mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-with : Horz.360 Deg Vert.50 Deg
INQUIRY

Applications:

  • 2.3GHz-2.5GHz Band
  • IEEE 802.11b, 802.11g, 802.11n Wireless Lan
  • 15dBi Omni Directional Multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems

Features:

  • Superior Performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical installation
  • In accordance with customer needs to change the color or features
  • Including tilt and swivel mast mounting kit

Frequency Range

2300MHz - 2500MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

15 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-with

6 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1480mm

Diameter (MAX)

70 x 83mm

Antenna Weight (G.W)

700 g

Accessories (G.W)

80 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS
