2.4GHz to 2.5GHz Mini Omni Directional Antenna


OS-242503-NF

2.4GHz to 2.5GHz 3dBi Outdoor Mini OMNI Directional Antenna

  • Dimension : 175x20x20mm
  • Weight : 130g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.78 deg
View Details
OS-242503-NM

2.4GHz to 2.5GHz 3dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 170x20x20mm
  • Weight : 135g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.78 deg
View Details
OS-242505-NF (Original No.: OS-242504-NF)

2.4GHz to 2.5GHz 4dBi Outdoor Mini OMNI Directional Antenna (N type Female connector)

Made in Taiwan
Frequency Range: 2.4 - 2.5 GHz
Antenna Type: Mini Omni
Nominal Gain: 4 dBi
Connector Port: N-Type Female
📖 DATASHEET
View Details
OS-242504-NM

2.4GHz to 2.5GHz 4dBi Mini OMNI Directional Outdoor Antenna (N-Male)

  • Dimension : 341x20x20mm
  • Weight : 190g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.30 deg
View Details
OS-242505-NM

2.4GHz to 2.5GHz 5dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 320x20x20mm
  • Weight : 185g
  • Connector : N-Male
  • Beam-width : Horz.360 Deg Vert.27 Deg
View Details
OS-242506-NF

2.4GHz to 2.5GHz 6dBi Outdoor Mini OMNI Directional Antenna

  • Dimension : 375x20x20mm
  • Weight : 210g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
View Details
OS-242506-NM

2.4GHz to 2.5GHz 6dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 370x20x20mm
  • Weight : 205g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.25 deg
View Details

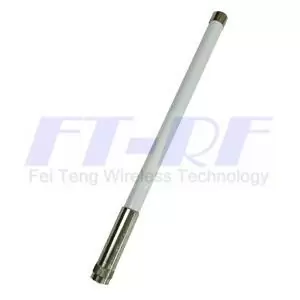

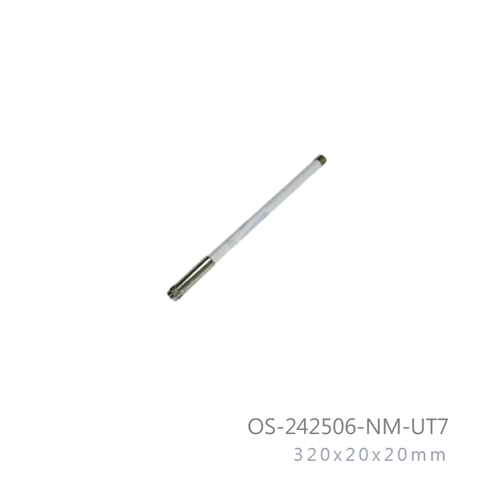

OS-242506-NM-UT7

2.4GHz to 2.5GHz 6dBi Outdoor Mini OMNI Directional Up Tilt 7 Deg Antenna (N-Male)

  • Original Model No.: OS-242506-UT7-NM
  • Dimension : 320x20x20mm
  • Weight : 160g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.25 deg
  • Up Tilt : 7 deg
View Details
OS-242507-NF

2.4GHz to 2.5GHz 7dBi Outdoor Mini OMNI Directional Antenna

  • Dimension : 435x20x20mm
  • Weight : 230g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
View Details

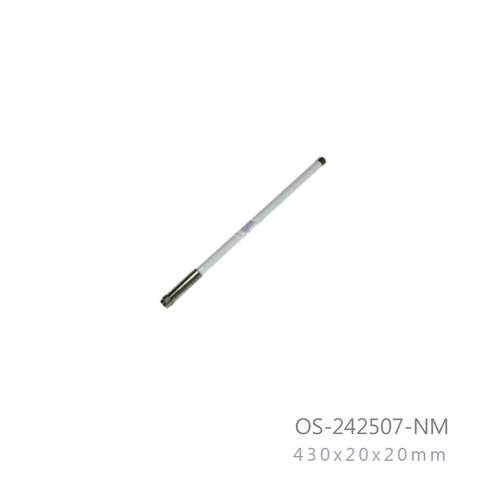

OS-242507-NM

2.4GHz to 2.5GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 430x20x20mm
  • Weight : 225g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.18 deg
View Details

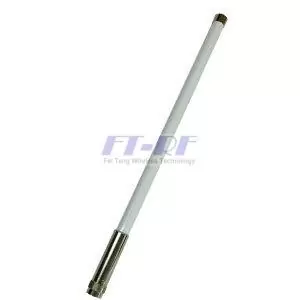

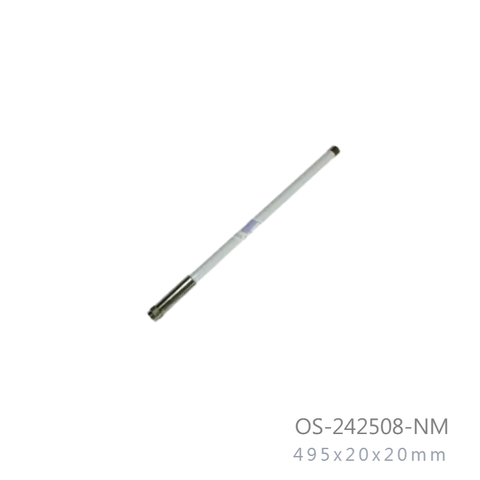

OS-242508-NM

2.4GHz to 2.5GHz 8dBi Outdoor Mini OMNI Directional Antenna (N-Male)

  • Dimension : 495x20x20mm
  • Weight : 235g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.12 deg
View Details

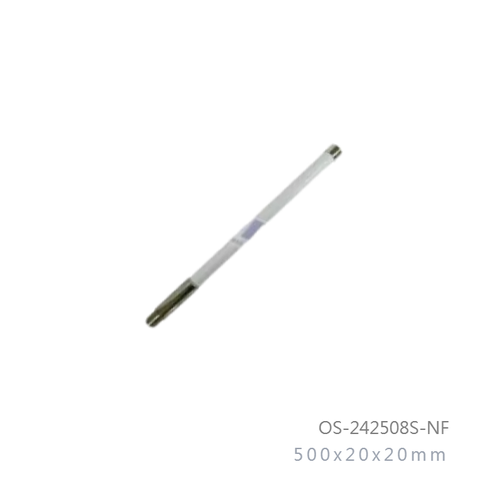

OS-242508S-NF

2.4GHz to 2.5GHz 8dBi Outdoor Mini OMNI Directional Antenna

  • Dimension : 500x20x20mm
  • Weight : 240g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.12 deg
View Details
