OA & LoRa Series (868 & 915 MHz) 2027 New Generation Upgrade Notice
Date: 16/10/2026
OFFICIAL LIFECYCLE & UPGRADE NOTICE
OA Series (868 & 915 MHz) 2027 Generation Upgrade & Transition Notice
FT-RF announces the planned generational transition for the OA Series (Multi-Band & Specialty Omni Antennas), with primary volume centered around our flagship 868 MHz and 915 MHz LoRa/ISM product lines. The entire series is being advanced toward the newly engineered 2027 Generation Version.
When planning wireless networks, a common misconception is that "higher dBi is always better." In reality, higher Omni gain is achieved by compressing the vertical radiation beamwidth. This technical guide breaks down the core physics principles of Omni antennas and features an interactive 3 dBi to 13.5 dBi E-Pattern Simulator below.
*Pre-production evaluation sampling is active through late 2026, with official commercial rollout scheduled for early 2027. Legacy versions will be phased out toward mid-2027.
FT-RF OA Series Omni Antenna
Lower Freq = Longer Antenna
Higher Gain = Narrower E-Plane
Larger Copper Tube (≤1/4λ) = Wider BW
3dBi ~ 13.5dBi E-Pattern Visualizer
2027 Symmetrical 90°/270° Peak
01
Lower Frequency = Longer Antenna for Same Gain
Antenna physical dimensions are governed by wavelength ($\lambda = c / f$). Lower operating frequencies (e.g., Sub-1GHz 868/915 MHz vs. 2.4/5 GHz) have much longer wavelengths. To achieve the same gain (e.g., 6 dBi), the collinear array requires longer radiating elements, resulting in a physically longer fiberglass radome at lower frequencies.
02
Higher Omni Gain = Narrower E-Plane 3dB Beamwidth
An Omni antenna radiates 360° horizontally (H-Plane). Increasing gain works like squeezing a balloon from top and bottom—compressing vertical (E-Plane) energy toward the horizon. Thus, higher gain produces a narrower E-Plane 3dB beamwidth, extending horizontal range while reducing vertical coverage.
03
Larger Internal Copper Tube = Wider Bandwidth (≤ 1/4λ)
A core highlight of our upgrade: we utilize larger-diameter high-conductivity copper tubes internally as radiating elements (optimized within the ≤ 1/4λ physical limit). Increasing radiator diameter lowers the Quality Factor (Q), reducing reactance sensitivity across frequencies and delivering a significantly wider operating bandwidth and flatter VSWR.
MEASURED E-PATTERN VISUALIZER (3 dBi – 13.5 dBi)
OA Series Measured Models Farfield E-Pattern Interactive Chart
💡 Click model buttons or drag slider to inspect main lobe compression & side lobes
📄 Reference File: OA-868M06A-NF-E-Pattern_6dBi.jpg
--- Green: 3dB Beamwidth
Select Measured Gain & OA Model
6 dBi
Model & Side Lobe Characteristics
OA-868M06A-NF (Balanced Butterfly / 1 Pair Side Lobes)
E-Plane 3dB Beamwidth
~24° (90° Symmetrical)
As seen across the 850–880 MHz measured sweep, the main beam is precisely locked onto the 90° horizontal line with 1 pair of mild side lobes. High curve overlap confirms wideband stability from the enlarged copper tube design.
🎯 Deployment Recommendation:
Standard outdoor LoRaWAN gateways, smart campus networks, precision agriculture, and general IIoT.

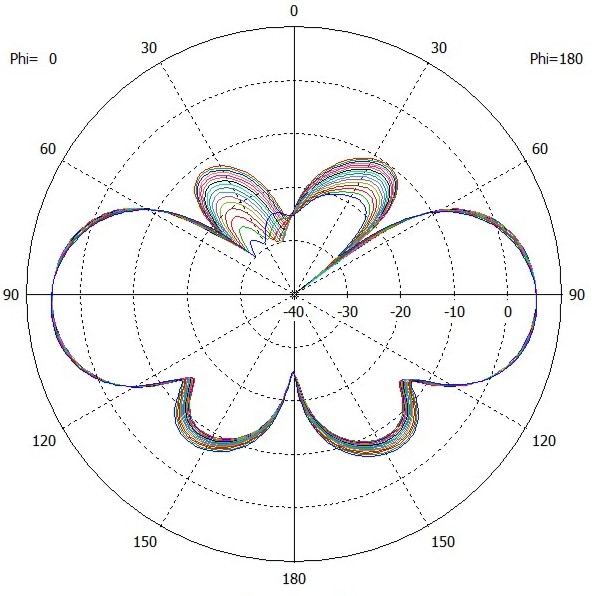

📐 2027 Generation: Symmetrical Elevation Pattern (Design Target)
Unlike market alternatives and legacy architectures that may suffer from upward or downward beam distortion, the 2027 Generation redesign is intended to establish improved vertical pattern symmetry. Radiation peak is targeted to be centered around 90° and 270° horizontal planes to project RF energy across the horizon while minimizing elevation tilt.
| Phase | Schedule |
|---|---|
| New Version Sampling | 2026 |
| New Version Release | January 2027 |
| Parallel Supply | Jan – Aug 2027 |
| Legacy EOL | August 2027 |
| Gain & Reference Model | E-Plane 3dB Beamwidth | Measured E-Pattern & Side-Lobe Profile | Recommended Deployment Scenarios |
|---|---|---|---|
|
3 dBi ~ 5 dBi • OA-824M03B-NF (3dBi) • OA-868M05A-NF (5dBi) |
~32° to 55° (Wide) | Smooth Apple (3dBi) → Wide Butterfly (5dBi) 3dBi has zero side lobes across 780–880MHz; 5dBi begins vertical compression with 1st minor side lobes. |
Indoor facilities, multi-story buildings, hilly terrain, and mobile vehicles/vessels. |
|
6 dBi ~ 9 dBi • OA-868M06A-NF (6dBi) • OA-868M07A-NF (7dBi) • OA-868M09A-NF (9dBi) |
~12° to 24° (Balanced) | Symmetrical Horizon Main Lobe + 1–3 Side Lobes As collinear elements increase, the 90° main lobe sharpens with 1 (6dBi), 2 (7dBi), to 3 (9dBi) side-lobe pairs. |
Mainstream outdoor LoRaWAN gateways, smart campuses, precision agriculture, and mid-range IIoT. |
|
10 dBi ~ 13.5 dBi • OA-868M10A-NF (10dBi) • OA-868M12A-NF (12dBi) • OA-868M14A-NF (13.5dBi) |
~5° to 10° (Razor-Sharp) | Razor-Sharp Horizon Beam + Dense Multi-Lobe Array Long collinear array compresses energy into a 5°–10° horizontal beam with 4 to 9 dense side-lobe pairs. |
Flat open terrain, coastal/maritime links, and ultra-long-range PtMP backhaul. |
| Internal Copper Tube | Tube Diameter ≤ 1/4λ | Tight Multi-Frequency Curve Overlap As seen in the colored frequency sweeps (780–880MHz / 850–880MHz), radiation patterns remain tightly locked without distortion. |
Expands operating bandwidth so the antenna maintains peak gain and symmetry across the entire band. |
🛠️ 2027 OA / LoRa Customization & Sampling
Our engineering team actively supports global LoRa deployment migration:
- Evaluation Samples: Fast-track sample dispatch for laboratory testing and field trials.
- Mechanical Support: Updated 3D STEP files and mechanical drawings upon request.
- Custom Frequency Bands: Specialized sub-band tuning for private LoRaWAN networks.
Direct Support: info-tw@ft168.com.tw
🛡️ Verified Taiwan Manufacturing Quality
Every 2027 OA / LoRa Series unit undergoes rigorous quality assurance in Taiwan:
- 100% VNA Tested: VSWR and return loss verified on every batch.
- Anechoic Chamber: Gain and elevation pattern symmetry compliance.
- Environmental Stress: Thermal shock, salt fog, and IP67 ingress testing.
- 100% Green Compliance: Sustainable packaging and non-toxic materials.
