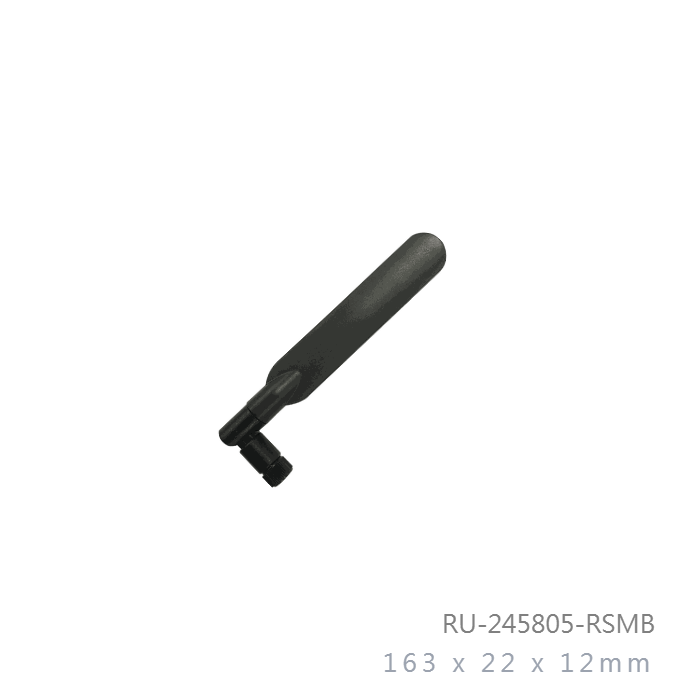

2.4GHz and 5.8GHz 5dBi indoor Rubber RP-SMA-Male/ Female OMNI Directional Antenna2.4GHz and 5.8GHz 5dBi indoor Rubber RP-SMA-Male/ Female OMNI Directional Antenna2.4GHz and 5.8GHz 5dBi indoor Rubber RP-SMA-Male/ Female OMNI Directional Antenna

Model No: RU-245805-RSMB

Datasheet:Download

  • Dimension :163x22x12mm
  • Weight: 50g
  • Connector: RP-SMA Male/ Female
  • Beamwidth: Horz.360 Deg, Vert.2.4 GHz: 54 Deg/ 5.8GHz: 29 Deg
INQUIRY

Applications:

  • 2.4GHz/5.8GHz 5dbi ISM Band

  • IEEE 802.11a,802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Public Wireless Hotspot

  • WiFi,RFID,WiMAX

  • Wireless Video Systems

Features:

  • Installed for Collinear Vertical Polarization
  • Indoor antenna for public Hot spots

  • RoHS Compliant

Frequency Range

2400MHz / 5800MHz

V.S.W.R (MAX)

2.0: 1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

5 dBi

Polarization

Linear

Maximum Power

5 Watts

Vertical Beamwidth

2.4GHz: 54Deg

5.8GHz: 29 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

FR4

Connector

RP-SMA-Male/ Female

Dimension

163x22x12mm

Antenna Weight

50g

Application Indoor

Radome Material

ABS

Installation Style 180 and 90 deg rotation
Wind Survival Greater then 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 35%~60% non-condensing
Storage Humidity 35%~50% non-condensing

Safety, Emission and other

CE, FCC, RoHS
