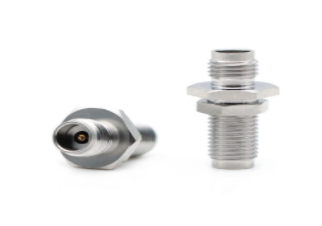

2.4mm Female to Female Bulkhead Adapter

Model No: 2.4-KKYG

Made in Taiwan

Freq. Range:	DC - 50 GHz
Connector:	2.4mm Bulkhead F-F
VSWR:	≤ 1.20 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

High-Frequency Precision Solutions

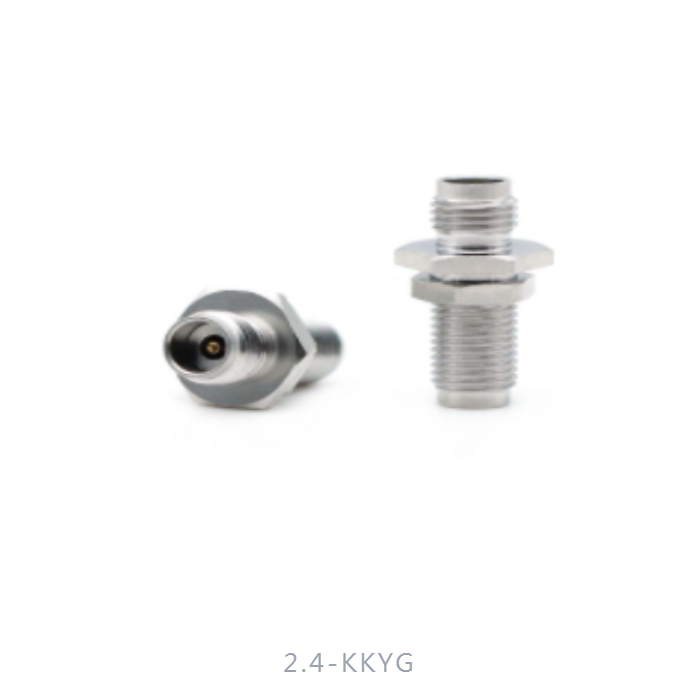

2.4mm Female to 2.4mm Female Bulkhead Precision Adapter (2.4-KKYG)

Professional high-precision bulkhead adapter designed for millimeter-wave panel-mount applications, providing exceptionally low VSWR and peak performance stability up to 50 GHz.

Electrical Specifications

Frequency Range	DC – 50 GHz
V.S.W.R (MAX)	≤ 1.20 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical Specifications

Model Name	2.4-KKYG
Connector Interface	2.4mm Female to 2.4mm Female (Bulkhead)
Durability	500 Cycles
Temperature Range	-55℃ ～ +165℃

Tactical Engineering Features

Superior Signal Precision

Engineered for ultra-low reflection loss (VSWR ≤ 1.20), ensuring the highest signal integrity for 5G, satellite communication, and high-frequency data testing.

Bulkhead Panel Integration

Precision-machined bulkhead design allows for secure mounting through enclosures or panels, making it an ideal interface for high-frequency instrument front-ends.

Mission-Critical Reliability

Industrial-grade construction with a 500-cycle durability rating and high dielectric strength for professional laboratory and manufacturing environments.
