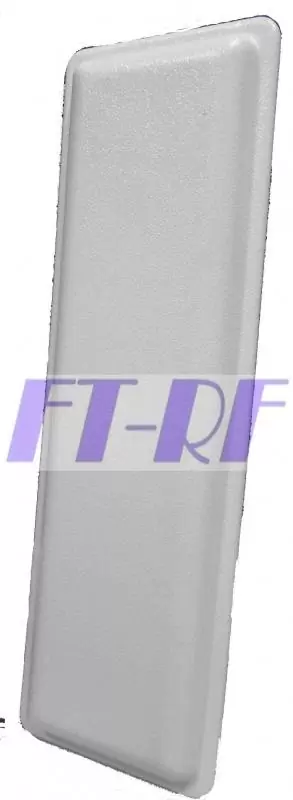

5.125 GHz to 5.875 GHz 15dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 15dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna5.125 GHz to 5.875 GHz 15dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna

Model No: PD-515915-NF

  • Dimensions: L370xW115xD20mm
  • Weight: 354g
  • Connector: N-Female*2
  • Beam-width: Port 1 +45 :Horz.68 Deg Port1 -45 : Vert.9 Deg
  • Port 2 -45: Horz.70Deg Port2 +45: Vert.9Deg
INQUIRY

Applications:

  • 5.15GHz-5.875GHz Band

  • IEEE 802.11a and 802.11n applications

  • 15dBi Directional Multipoint applications

  • Point to Point Bridge / MMDS

  • Public Wireless

  • WiMAX, WiLAN, WiFi,802.11a

  • 5.8GHz Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency 5125MHz - 5875MHz
V.S.W.R (MAX) 2.0 :1
Antenna Type  Patch Type
Radiation Directional
Gain 15 dBi
Polarization +-45deg
Maximum Power 25 Watts
Vertical Beam-width -45: 9 deg

+45: 9 deg

Horizontal Beam-width

+45: 68 Deg

-45: 70 Deg

FBR Greater than 25 dB
Impedance 50 Ohm
Antenna Design Patch Array
Internal Material Rogers
Connector N-Female*2

Length x Width

370 x 115mm

Diameter

20mm

Antenna Weight

354 g

Accessories

200 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater than 120MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
