5.1GHz to 5.9GHz Panel Directional Antenna

PV-515923-NF

5.1 GHz to 5.9 GHz 23dBi 2x2 MIMO Dual Polarized Vertical & Horizontal Panel Antenna

  • Dimensions: L385xW385xD25mm
  • Weight: 1kg
  • Connector: N-Female*2
  • Beam-width: Horz.Port1: 7 Deg / Port2: 8 Deg
  • Beam-width: Vert.Port1: 7 Deg / Port2: 8 Deg
View Details
PD-515912-NF

5.125 GHz to 5.875 GHz 12dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna (N-Female)

  • Dimension: L180xW150xH25mm
  • Weight: 220g
  • Connector: N-Female*2
  • Beam-width: Horz.+45:72Deg; -45:73Deg
  • Vert. +45:18Deg; -45:18Deg
View Details
PD-515912-SF

5.125 GHz to 5.875 GHz 12dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna(SMA-Female)

  • Dimension: L180xW150xD25mm
  • Weight: 220g
  • Connector: SMA-Female*2
  • Beam-width: Horz.+45:67 Deg; - 45:67Deg
  • Vert. +45:17 Deg; -45:18Deg
View Details
PD-515915-NF

5.125 GHz to 5.875 GHz 15dbi 2x2 MIMO Dual Polarized +-45Deg Vertical and Horizontal Panel Directional Outdoor Antenna

  • Dimensions: L370xW115xD20mm
  • Weight: 354g
  • Connector: N-Female*2
  • Beam-width: Port 1 +45 :Horz.68 Deg Port1 -45 : Vert.9 Deg
  • Port 2 -45: Horz.70Deg Port2 +45: Vert.9Deg
View Details
PV-545917-NF

5.4 GHz to 5.9 GHz 17dBi 2x2 MIMO Dual Polarized Vertical and Horizontal Panel Directional Outdoor Antenna

  • Dimension: L230xW230xD25mm
  • Weight: 0.95 KG
  • Connector: N-Female
  • Beam-width: Horz.Port1: 16 Deg / Port2: 15 Deg
  • Beam-width: Vert.Port1: 17 Deg / Port2: 16 Deg
View Details

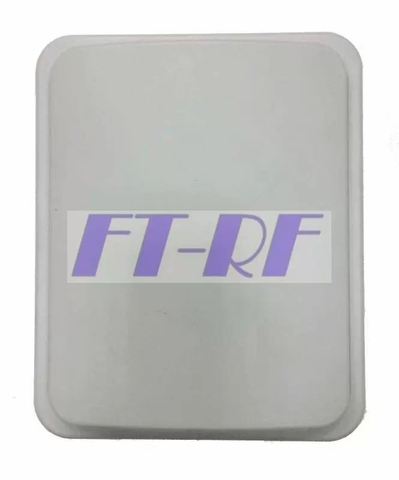

PV-515912A1-NF

5.1 GHz to 5.9 GHz 12dBi 2x2 MIMO Dual Polarized Vertical & Horizontal Panel Directional Outdoor Antenna (A1)

  • Dimensions: L180xW150xD25mm
  • Weight: 220g
  • Connector: N-Female*2
  • Beam-width: Horz.Port1: 33 Deg / Port2: 86 Deg
  • Beam-width: Vert.Port1: 61 Deg / Port2: 19 Deg
View Details

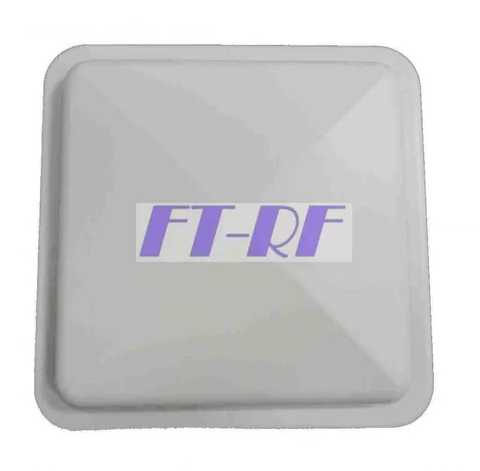

PV-515912-NF

5.1 GHz to 5.9 GHz 12dBi 2x2 MIMO Dual Polarized Vertical & Horizontal Panel Directional Outdoor Antenna

  • Dimensions: L130xW130xD25mm
  • Weight: 150g
  • Connector: N-Female*2
  • Beam-width: Horz.Port1: 86 Deg / Port2: 18 Deg
  • Beam-width: Vert.Port1: 19 Deg / Port2: 59 Deg
View Details

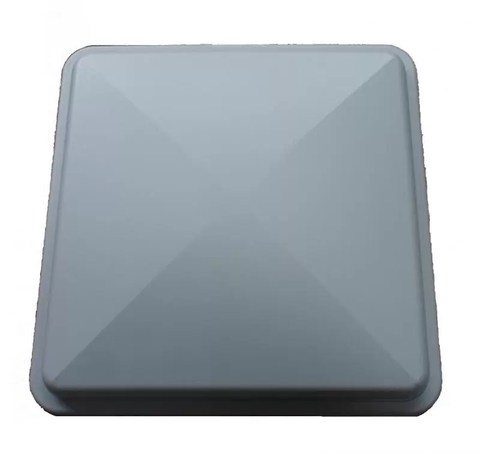

PV-515918-NF

5.1 GHz to 5.9 GHz 18dBi 2x2 MIMO Dual Polarized Vertical & Horizontal Panel Directional Outdoor Antenna

  • Dimensions: 240x240x55mm
  • Weight: 370g
  • Connector: N-Female*2
  • Beam-width: Horz.Port1: 18 Deg / Port2: 15 Deg
  • Beam-width: Vert.Port1: 19 Deg / Port2: 17 Deg
View Details

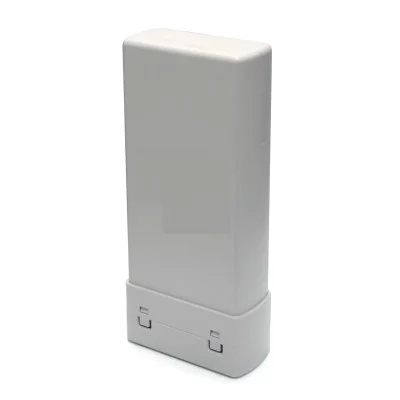

PE-5158G13-V0XXX

5.125 GHz to 5.875 GHz 13dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimension: L265xW120xD50mm
  • Weight: 0.6 KG
  • Connector: Custom choice
  • Beam-width: Horz.42 deg Vert.38 deg
View Details
PE-5158G18-V0XXX

5.125 GHz to 5.875 GHz 18dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.17 deg Vert.18 deg
View Details

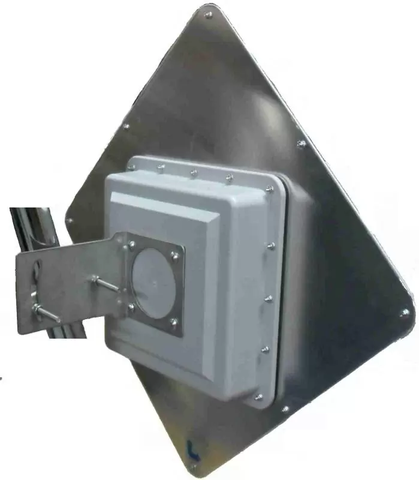

PE-5158G23-V0SF0

5.125GHz to 5.875GHz 23dbi ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimension: L375xW375xD85mm
  • Weight: 1.8 KG
  • Connector: custom choice
  • Beam-width: Horz.10 deg Vert.12 deg
View Details

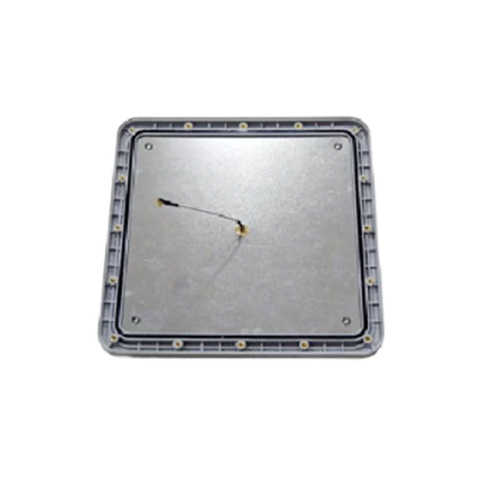

PE-5458G17-VHXXX

5.475 GHz to 5.875 GHz 17dbi 2x2 MIMO Dual Polarized Vertical and Horizontal ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.16 deg Vert.15 deg
View Details
