Descriptions
Professional LTE Low-Band Solutions

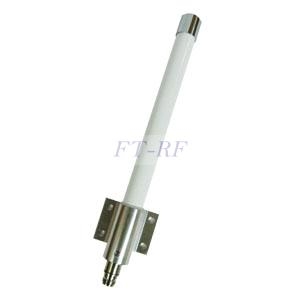

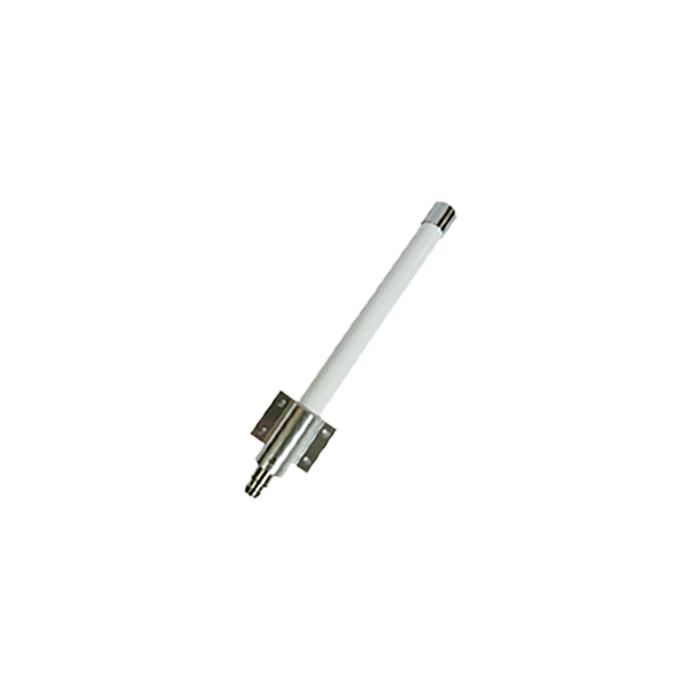

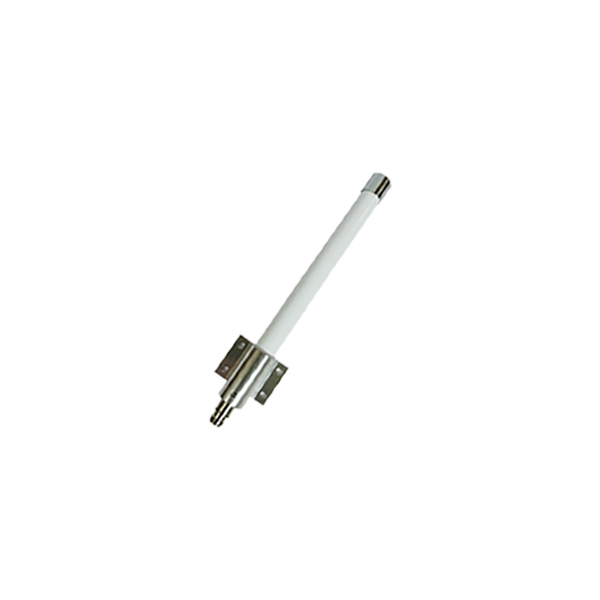

690 - 730 MHz Compact Collinear Omni Antenna
A professional industrial-grade collinear antenna designed for 360-degree horizontal coverage in the 700MHz band. Engineered for superior stability in public wireless hotspots and video systems requiring a compact, high-durability outdoor solution.
Electrical Specifications
| Frequency Range | 690 MHz – 730 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 3 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Beam-width (H/V) | Horz. 360° / Vert. 65° |
| Antenna Design | 1/4 Wavelength Collinear Dipole (Copper Internal) |
Mechanical & Environmental

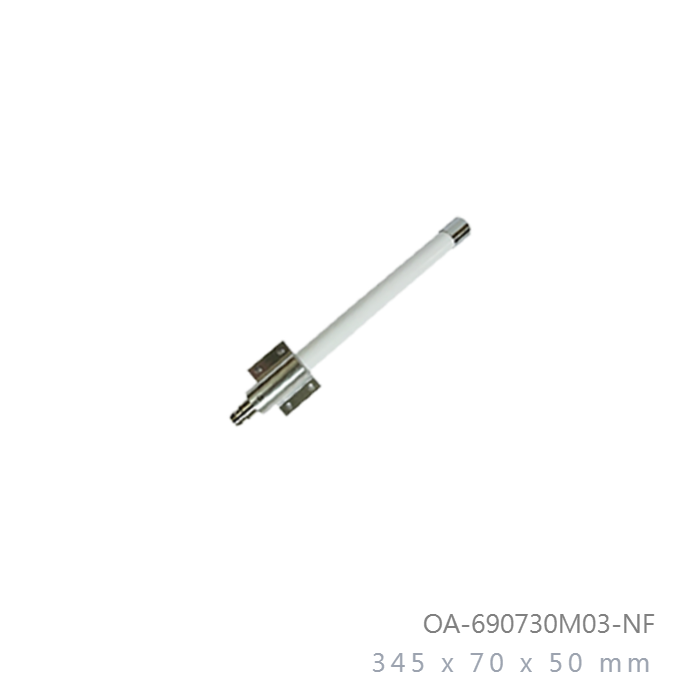

| Dimensions | 345 x 70 x 50 mm |
| Total Weight (G.W.) | 420 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
Stable Omni Radiation
Delivers a consistent 3 dBi gain with a broad 65-degree vertical beam-width, providing reliable signal distribution for multipoint public wireless networks and high-density hotspot applications.
Integrated Surge Protection
Features built-in DC-Short lightning protection to safeguard sensitive connected radio equipment against atmospheric electrical discharge and static buildup.
Tactical Mounting Kit
Includes a professional-grade tilt and swivel mast mounting kit (Stainless Steel/Aluminum), allowing for precise vertical adjustment to optimize signal patterns in the field.
Compact Industrial Build
The UV-resistant fiberglass radome and aluminum support structure are engineered for extreme durability, surviving wind speeds over 150 MPH while maintaining a compact footprint.
