Precision Sub-Miniature Interconnects

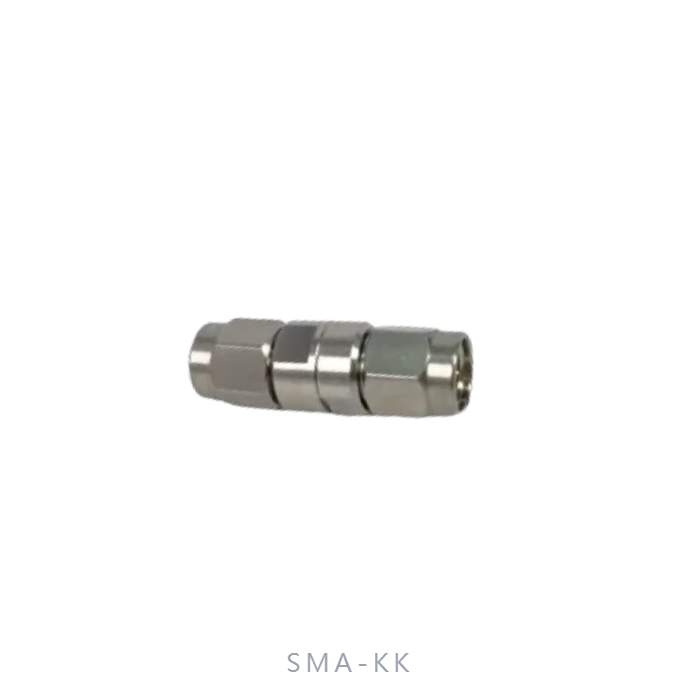

SMA Female to SMA Female Precision Adapter (SMA-KK)
Professional grade straight SMA Female to SMA Female in-series adapter engineered for superior mechanical stability and signal integrity. Optimized for reliable laboratory testing and telecommunications infrastructure up to 6 GHz.
Electrical Specifications
| Frequency Range | DC – 6 GHz |
| V.S.W.R (MAX) | ≤ 1.15 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental
| Model Name | SMA-KK |
| Connector Interface | SMA Female to SMA Female |
| Durability | 500 Mating Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Superior Signal Integrity
Precision-machined interface designed to maintain strict 50-ohm impedance matching and minimize signal reflection (VSWR ≤ 1.15) across broadband wireless frequencies.
Industrial Grade Build
Constructed with high-quality materials to provide consistent mechanical stability and reliable electrical contact through 500 mating cycles in demanding environments.
Broad Thermal Reliability
Stable electrical performance across a vast operational temperature span from -55℃ up to +165℃, ideal for high-stress environmental laboratory testing.
Precision Interconnect Support
Ensures seamless in-series coupling for telecommunications infrastructure, Wi-Fi systems, and professional measurement chains.
