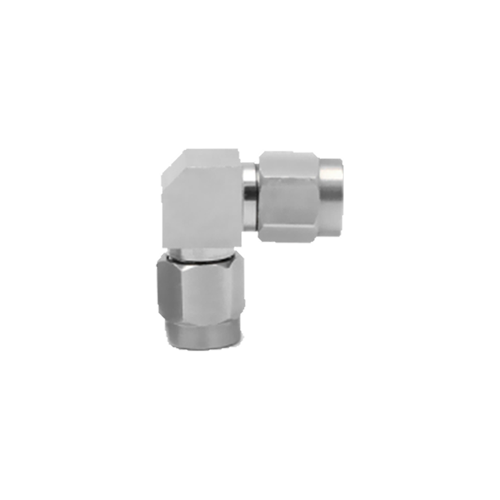

SMA Male to Male Right-Angle Adapter

Model No: SMA-JJW

Made in Taiwan

Freq. Range:	DC - 6 GHz
Connector:	SMA(M)-SMA(M) R/A
VSWR:	≤ 1.20 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

Precision Sub-Miniature Interconnects

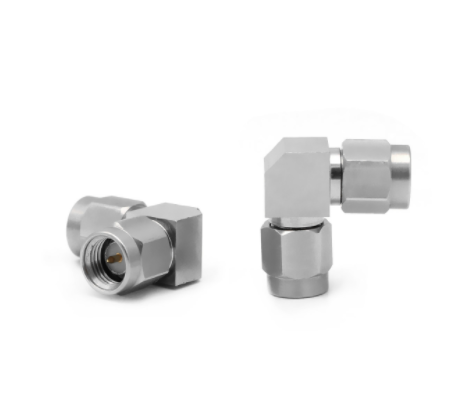

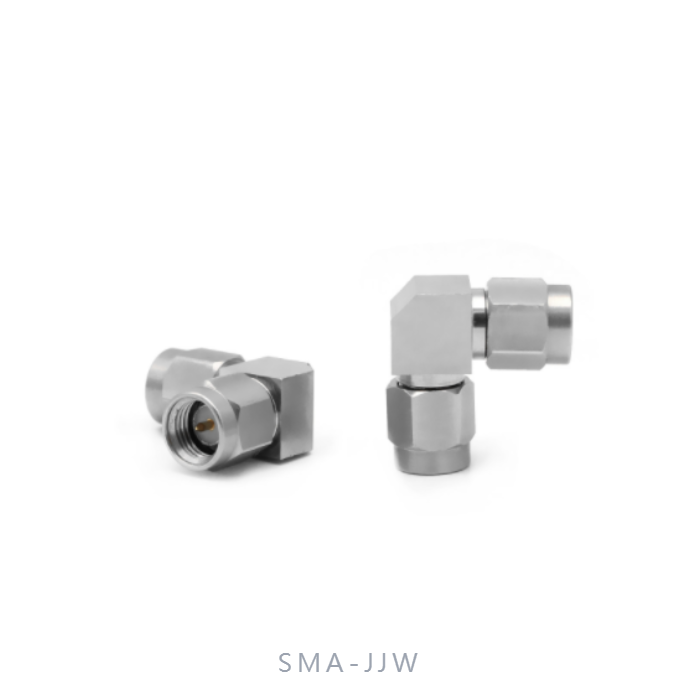

SMA Male to SMA Male Right Angle Precision Adapter (SMA-JJW)

Professional grade 90-degree right angle SMA-Male to SMA-Male adapter engineered for superior mechanical stability in tight-space applications, ensuring consistent signal integrity up to 6 GHz.

Electrical Specifications

Frequency Range	DC – 6 GHz
V.S.W.R (MAX)	≤ 1.20 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical & Environmental

Model Name	SMA-JJW
Connector Interface	SMA Male to SMA Male
Outline Orientation	Right Angle (90°)
Durability	500 Mating Cycles
Temperature Range	-55℃ ～ +165℃

Engineering Core Features

Compact Right Angle Design

Precision-machined 90-degree orientation allows for seamless RF connectivity in space-constrained enclosures and compact system architectures without compromising signal paths.

Superior Signal Integrity

Maintains strict 50-ohm impedance matching to minimize signal reflection and return loss (VSWR ≤ 1.20) across all broadband wireless frequencies.

Industrial Grade Build

Constructed with premium materials and precision manufacturing in Taiwan to ensure high mechanical strength and reliable electrical contact through 500 mating cycles.

Extreme Thermal Tolerance

Operates reliably across a vast thermal span (-55℃ to +165℃), ideal for aerospace, telecommunications infrastructure, and high-stress laboratory environments.
