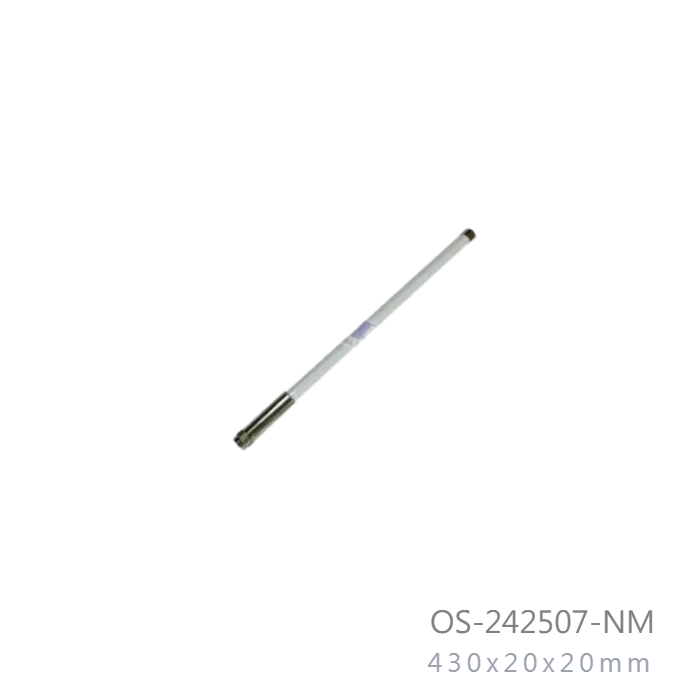

2.4GHz to 2.5GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)2.4GHz to 2.5GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)2.4GHz to 2.5GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)

Model No: OS-242507-NM

  • Dimension : 430x20x20mm
  • Weight : 225g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.18 deg
INQUIRY

Applications:

  • 2.4GHz - 2.5GHz Band
  • IEEE 802.11b, 802.11g, 802.11b/g, 802.11n Wireless LAN
  • MINI Omni Directional Multipoint applications
  • Bluetooth
  • Pubic Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems
  • MIMO

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • Base station antennas, miniature design
  • DC Short lightning protection
  • Installed for Collinear Vertical Polarization
  • Behind and support is an aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Small Size Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

430 mm

Diameter (MAX)

20 x 20mm

Antenna Weght (G.W)

220 g

Accessories (G.W)

5 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Ground Material

Aluminum or Copper

Mount Style NO
Mounting Optional / Pole Mount / Well Mount

Wind Survival

Greater then 180MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

 RoHS
