Applications and Features
-
Electrical Specifications
-
Mechanical Specifications
Applications:
-
2.5GHz-2.7GHz Band
-
IEEE 802.16x,802.20x, Wireless Lan
-
Directional Multipoint applications 2 x 2 TX/RX
-

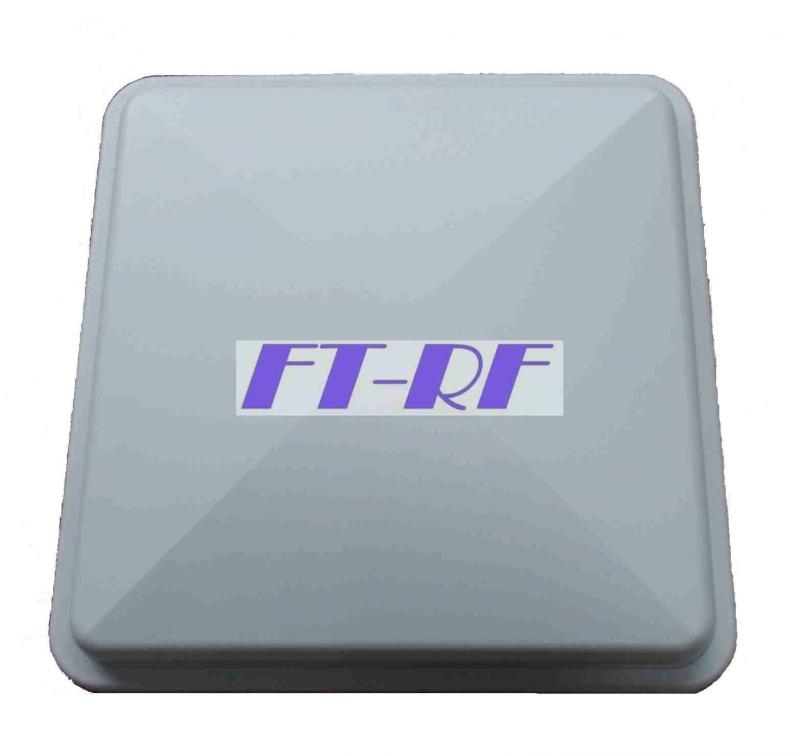

MIMO 2x2 Dual Port 13dBi
-
Public Wireless Point to Point
-
WiMAX,WiBro
-
Wireless Video Systems
Features:
- Superior Performance
- Lightweight (UV ABS)
- Good appearance design
- DC Short lightning protection
- Outdoor antenna for public Hot spots
- Includes tilt and swivel mast mount brackets
- IP65 Waterproof rating
- RoHS Compliant
|
Frequency Range |
2500MHz - 2700MHz |
|---|---|
|
V.S.W.R (MAX) |
1.3 :1 |
|
Antenna Type |
Patch Type |
| Radiation | Directional |
|
Gain |
13 dBi |
|
Polarization |
Dual Vertical and Horizontal |
|
Maximum Power |
5 Watts |
|
Vertical Beam-width |
Port1: 26 Deg / Port2: 25 Deg |
|
Horizontal Beam-width |
Port1: 23 Deg / Port2:24 Deg |
| FBR | Greater than 20 dB |
| Cross Polarization | Greater than -18 dB |
|
Impedance |
50 Ohm |
|
Antenna Design |
4(2x2) Patch Array |
|
Internal Material |
FR4(Taiwan) |
|
Connector |
N-Female x 2 |
|

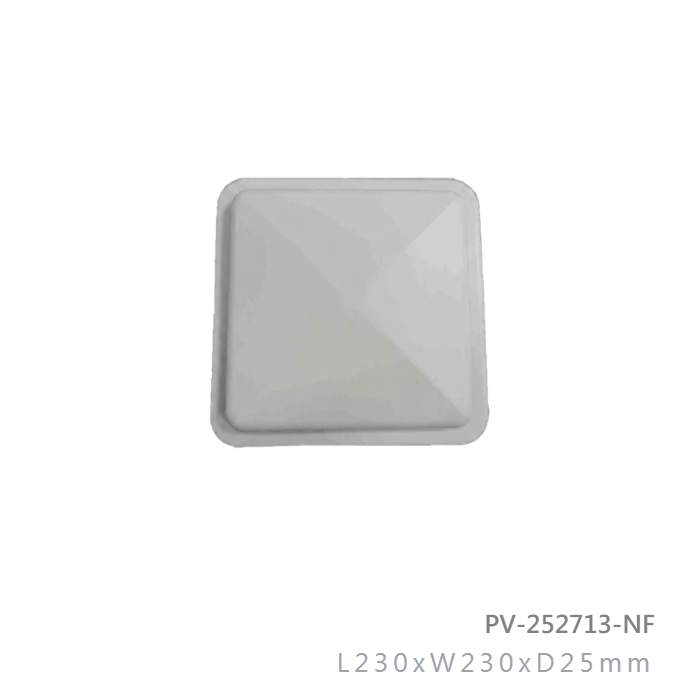

Length x Width(MAX) |
230 x 230mm |
|---|---|
|
Diameter (MAX) |
25mm |
|
Antenna Weight (G.W) |
500 g |
|
Accessories (G.W) |
300 g |
| Application | Indoor / Outdoor |
|
Radome Material |
White ABS |
| Mount Style | Pole Mount |
|
Parts Material |
Aluminum |
| Mounting | Stainless Steel and Aluminum |
| Mount Adjustment | 0-30deg |
|
Wind Survival |
Greater than 120MPH |
| Storage Temperature | -20 to +80 |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10%~80% non-condensing |
| Storage Humidity |
5%~80% non-condensing |
|
Safety, Emission and other |
RoHS, CE, FCC, WEEE |
