4.9 GHz to 6.2 GHz Frequency

WiMAX, WiFi, IEEE802.11A, Wireless LAN, 5.8GHz UNII, and ISM Applications, 5G, Unlicensed European 5.4 GHz Band Applications

PA-444908-NF

4.4 to 4.99GHz 8dbi Panel Outdoor Antenna

  • Dimensions: 125x125x35mm
  • Weight: 450g
  • Connector: N-Female
  • Beam-width: Horz.70 Deg Vert.68 Deg
View Details
PA-444910-NF

4.4 GHz to 4.99 GHz 10dbi Panel Directional Outdoor Antenna

  • Dimensions: 175x145x35mm
  • Weight: 570g
  • Connector: N-Female
  • Beam-width: Horz.70 Deg Vert.38 Deg
View Details
PA-444913-NF

4.4 GHz to 4.99 GHz 13dbi Panel Outdoor Antenna

  • Dimensions: 210x210x35mm
  • Weight: 680g
  • Connector: N-Female
  • Beam-width: Horz.32 Deg Vert.32 Deg
View Details
PA-444918-NF

4.4 GHz to 4.99 GHz 18dbi Panel Directional Outdoor Antenna

  • Dimensions: 310x310x35mm
  • Weight: 1180g
  • Connector: N-Female
  • Beam-width: Horz.17 Deg Vert.17 Deg
View Details

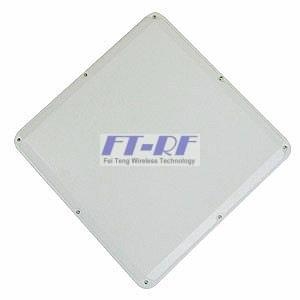

PA-444923-NF

4.4 GHz to 4.99 GHz 23dbi Panel Directional Outdoor Antenna

  • Dimensions: 375x375x30mm
  • Weight: 1480g
  • Connector: N-Female
  • Beam-width: Horz.12 Deg Vert.12 Deg
View Details
PA-445123-NF

4.4 GHz to 5.125 GHz 23dbi Panel Directional Outdoor Antenna

  • Dimensions: 410x410x30mm
  • Weight: 1070g
  • Connector: N-Female
  • Beam-width: Horz.9 Deg Vert.9 Deg
View Details
OI-496205-NF

4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Female)

  • Dimensions: 165x20mm
  • Weight: 60g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.21 deg
View Details
OI-496205-NM

4.9 GHz to 6.2 GHz 5dbi Outdoor Super Mini Omni Directional Antenna (N-Male)

  • Dimensions: 120x13mm
  • Weight: 45g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.21 deg
View Details

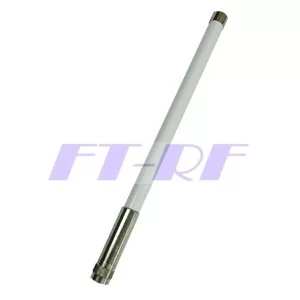

OS-515906-NM

5.125 GHz to 5.875 GHz 6dbi Mini Omni directional Outdoor Antenna (N-Male)

  • Dimension: 280x20x20mm
  • Weight: 171g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.24 deg
View Details
OS-515908-NM

5.125 GHz to 5.875 GHz 8dbi Mini Omni directional Outdoor Antenna (N-Male)

  • Dimensions: 315x20x20mm
  • Weight: 171g
  • Connector: N-Male
  • Beam-width: Horz.360 deg Vert.12 deg
View Details

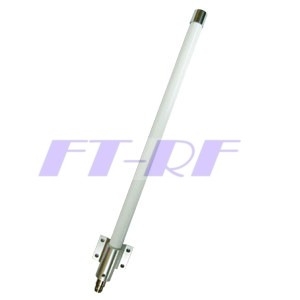

OA-545910-NF

5.425 GHz to 5.875 GHz 10dbi Omni Directional Outdoor Antenna

  • Dimensions: 445x70x50mm
  • Weight: 440g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.9 deg
View Details

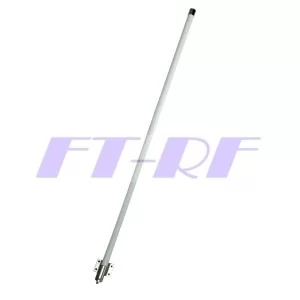

OA-545912-NF

5.425 GHz to 5.875 GHz 12dbi Omni Directional Outdoor Antenna

  • Dimensions: 575x70x50mm
  • Weight: 490g
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.8 deg
View Details
