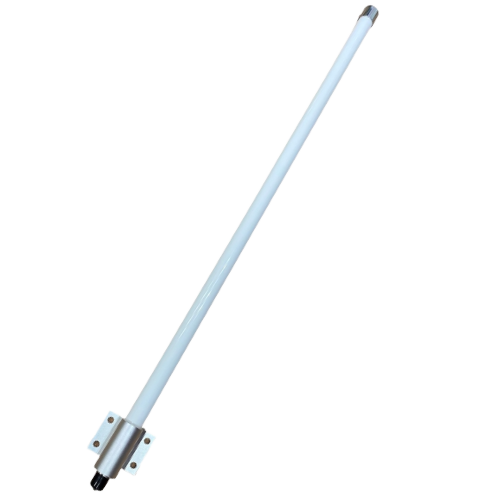

915 MHz 5dBi Omni Directional Outdoor Antenna (US915)915 MHz 5dBi Omni Directional Outdoor Antenna (US915)915 MHz 5dBi Omni Directional Outdoor Antenna (US915)

Model No: OA-915M05-NF

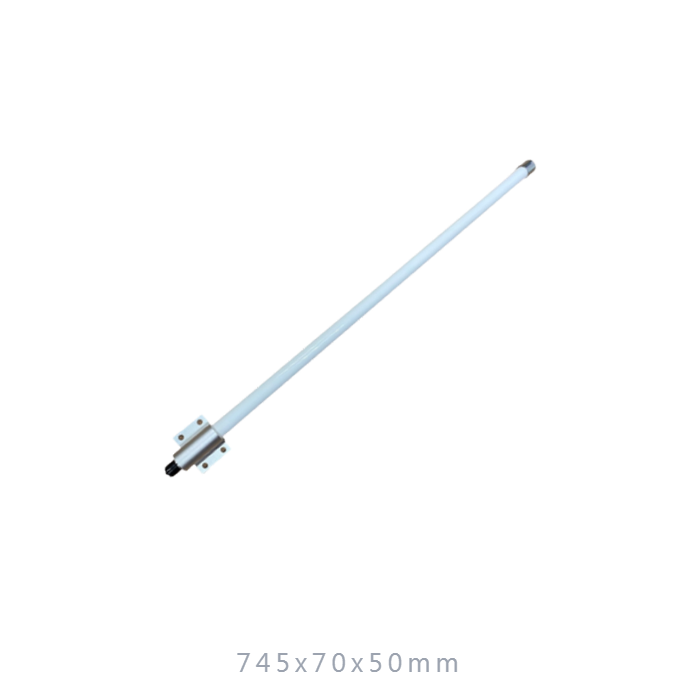

  • Dimension : 745x70x50mm
  • Weight : 750g
  • Connector : N-Female
  • Beamwidth : Horz.360 deg Vert.38 deg
INQUIRY

Applications:

  • 902MHz to 928MHz Band
  • US915 LoRA
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-with

38 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

800+/-5 mm

Diameter

70 x 50mm

Antenna Weight

 680 g

Accessories

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-20 to +80

Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity 5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
