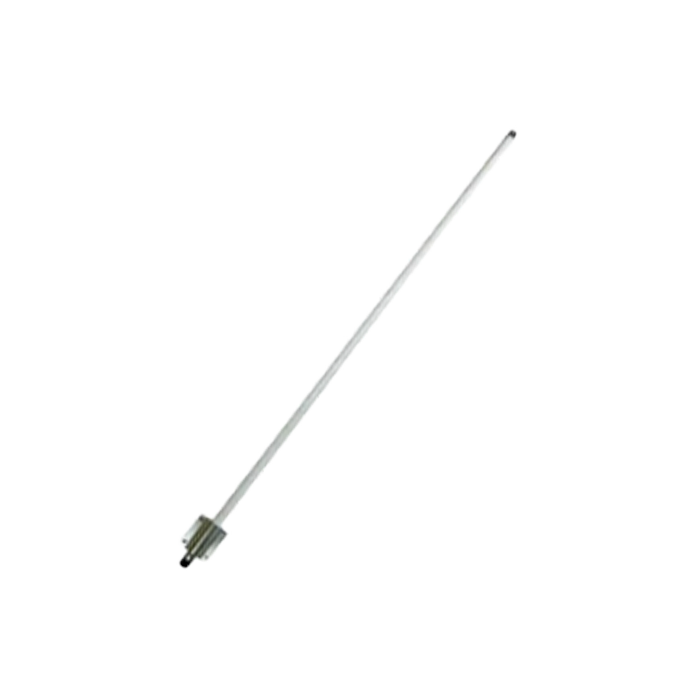

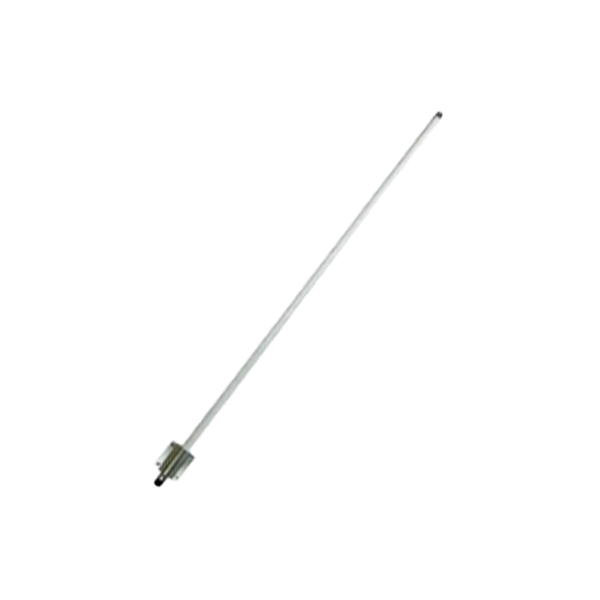

915 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (AS915)915 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (AS915)915 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (AS915)

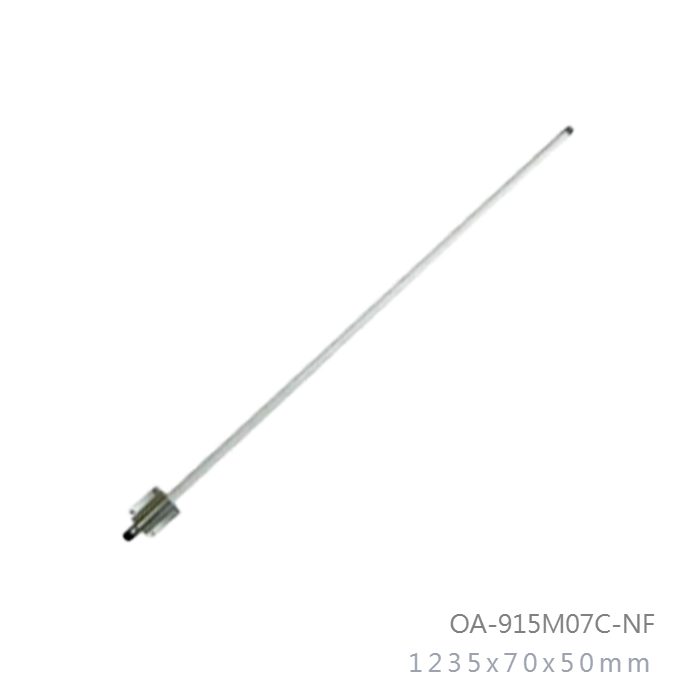

Model No: OA-915M07C-NF

Datasheet:Download

  • Dimension: 1235x70x50mm
  • Weight: 0.58 KG
  • Connector: N-Female
  • -3dB Beamwidth: Horz.360 deg Vert.21 deg
INQUIRY

The LoRa 915MHz antenna is an omnidirectional outdoor antenna that operates in the 902 to 928MHz ISM band and has a core frequency of 915MHz. The antenna is intended for use in industrial and environmental monitoring, mesh network applications, and LoRa and LPWA networks, among other things.

This series omnidirectional antenna radiates consistently in the azimuth from 3 to 9dBi gain. This collinear design feature gives the highest performance, providing better coverage and hence a longer range in the horizontal plane over 360 degrees, reducing the number of mesh nodes required.
Because of the UV protection, this design is extremely robust and can be used in any weather condition, even in a tough environment.

Lora 915Mhz antennas are simple to use and may be immediately connected to access points. One pair of packing contains a U-bolt and waterproof tape, allowing the antenna to be mounted on a wall or pole depending on the situation.

Applications:

  • 915 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (AS915)
  • Multipoint applications
  • Wireless LAN systems
  • Lora, RFID system

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • All-weather operation
  • Integral N-Female connector
  • RoHS Compliant


Frequency Range

902MHz to 928MHz

V.S.W.R

(AVG) 2:1

Antenna Type

Spring array

Radiation

Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

30 Watts

Vertical Beam-width

21 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Spring array

Internal Material

Copper spring

Connector

N-Female

Length

1235+/-5 mm

Diameter

70 x 50mm

Antenna Weight

 572 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
