Professional Interconnect Solutions

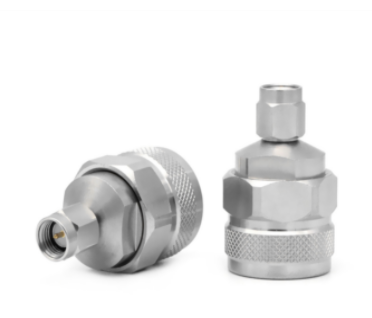

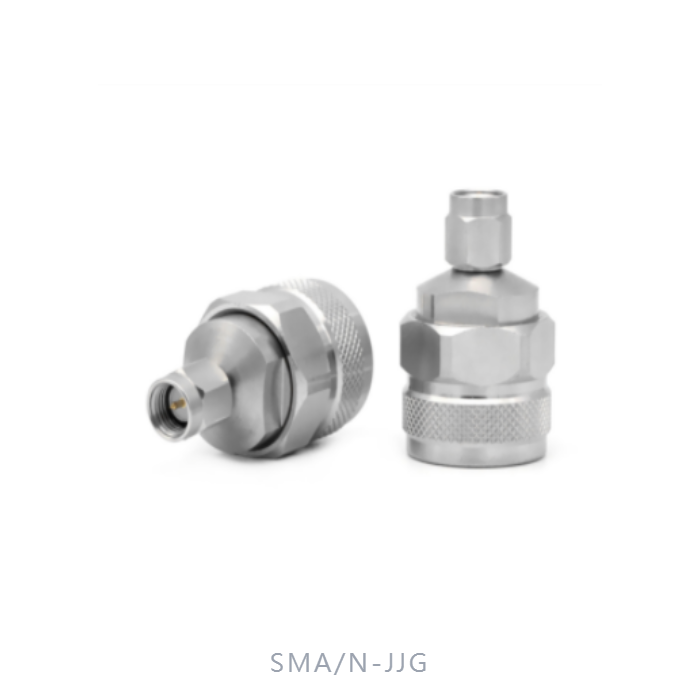

SMA Male to N-Type Male Precision Adapter (SMA/N-JJG)
High-performance between-series RF adapter designed for precision measurement and industrial wireless infrastructure, ensuring signal integrity up to 18 GHz.
Electrical Specifications
| Frequency Range | DC – 18 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications
| Model Name | SMA/N-JJG |
| Connector Interface | SMA Male to N-Type Male |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Superior Signal Performance
Engineered for low reflection loss (VSWR ≤ 1.20), providing stable and accurate signal transition for 5G, telecommunications, and high-frequency data testing.
Industrial Grade Build
Constructed with premium materials to ensure high mechanical strength and reliable electrical contact across 500 mating cycles.
Extreme Environment Stability
Operates reliably from -55℃ up to +165℃, making it suitable for aerospace, defense, and high-stress thermal laboratory environments.
Precision Impedance Matching
Maintains strict 50-ohm impedance matching to minimize return loss and ensure maximum power transfer in professional RF systems.
