1710MHz to 2170MHz Panel Directional Antenna


PA-171808-NF

1710MHz to 1880MHz 8dbi Panel Directional Outdoor Antenna

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-width : Horz.60 deg Vert.46 deg
View Details
PA-171814-NF

1710MHz to 1880MHz 14dbi Panel Directional Outdoor Antenna

  • Dimension : L275xW275xD45mm
  • Weight : 0.8 KG
  • Connector : N-Female
  • Beam-width : Horz.40 deg Vert.36 deg
View Details
PA-171816-NF

1710MHz to 1880MHz 16dbi Panel Directional Outdoor Antenna

  • Dimension : L375xW375xD40mm
  • Weight : 1.2 KG
  • Connector : N-Female
  • Beam-width : Horz.23 deg Vert.22 deg
View Details
PA-172107-NF

1.71GHz to 2.17GHz 7dBi Panel Directional Outdoor Antenna

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-with : Horz.75deg Vert.65deg
View Details
PA-172113-NF

1.71GHz to 2.17GHz 13dBi Panel Directional Outdoor Antenna

  • Dimension : L270xW270xD40mm
  • Weight : 0.85 KG
  • Connector : N-Female
  • Beam-with : Horz.32 deg Vert.32 deg
View Details
PA-181908-NF

1850MHz to 1990MHz 8dbi Panel Directional Outdoor Antenna

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-width : Horz.60 deg Vert.46 deg
View Details
PA-181914-NF

1850MHz to 1990MHz 14dbi Panel Directional Outdoor Antenna

  • Dimension : L275xW275xD45mm
  • Weight : 0.8 KG
  • Connector : N-Female
  • Beam-width : Horz.40 deg Vert.36 deg
View Details
PA-181916-NF

1850MHz to 1990MHz 16dbi Panel Directional Outdoor Antenna

  • Dimension : L375xW375xD45mm
  • Weight : 1.2 KG
  • Connector : N-Female
  • Beam-width : Horz.23 deg Vert.22 deg
View Details

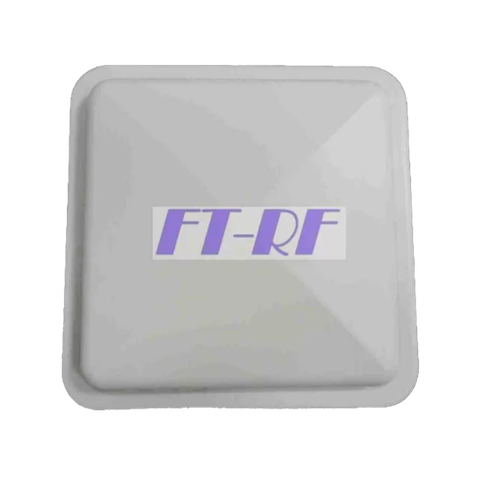

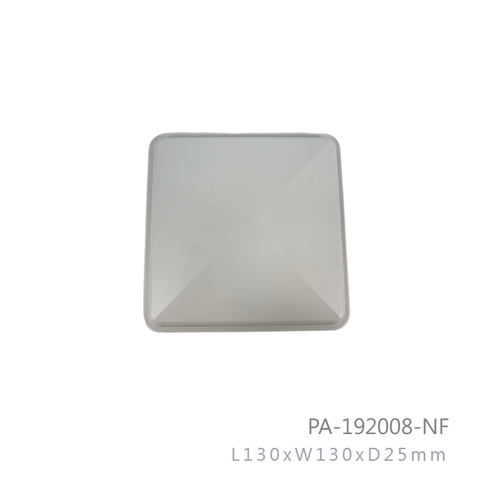

PA-192008-NF

1900MHz to 2050MHz 8dbi Panel Directional Outdoor Antenna

  • Dimension : L130xW130xD25mm
  • Weight : 0.4 KG
  • Connector : N-Female
  • Beam-width : Horz.60 deg Vert.46 deg
View Details

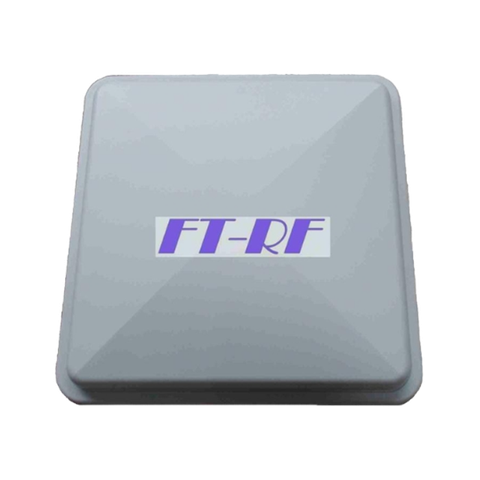

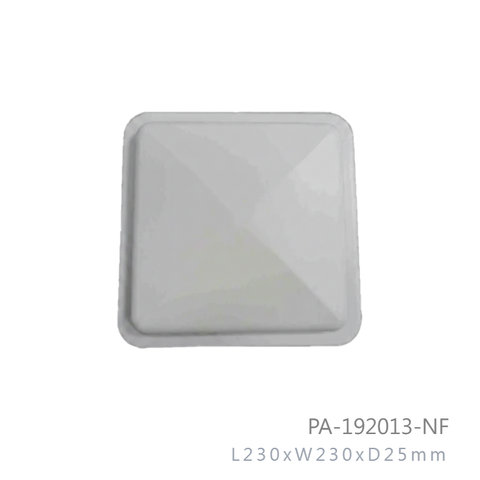

PA-192013-NF

1900MHz to 2050MHz 13dbi Panel Directional Outdoor Antenna

  • Dimension : L230xW230xD25mm
  • Weight : 0.75 KG
  • Connector : N-Female
  • Beam-width : Horz.28 deg Vert.27 deg
View Details
PA-192017-NF

1900MHz to 2050MHz 17dbi Panel Directional Outdoor Antenna

  • Dimension : L375xW375xD40mm
  • Weight : 1.2 KG
  • Connector : N-Female
  • Beam-width : Horz.19 deg Vert.18 deg
View Details
PA-222317-NF

2200MHz to 2300MHz 17dbi Panel Directional Outdoor Antenna

  • Dimension : L375xW375xD40mm
  • Weight : 1.2 KG
  • Connector : N-Female
  • Beam-width : Horz.19 deg Vert.18 deg
View Details
