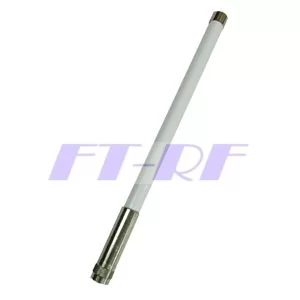

2.3GHz to 2.4GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)2.3GHz to 2.4GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)2.3GHz to 2.4GHz 7dBi Outdoor Mini OMNI Directional Antenna (N-Male)

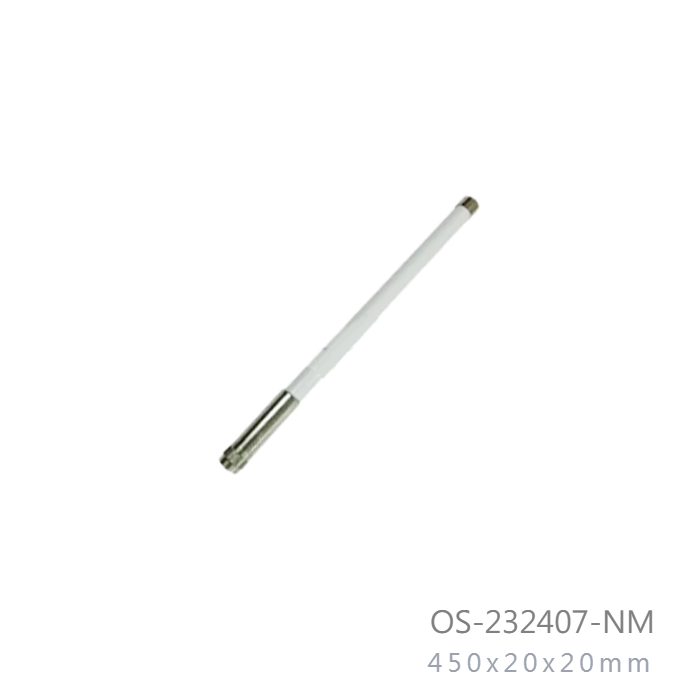

Model No: OS-232407-NM

  • Dimension : 450x20x20mm
  • Weight : 235g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.18 deg
INQUIRY

Applications:

  • 2.3GHz to 2.4GHz Band
  • IEEE 802.16x / 802.20x Wireless Lan
  • MINI Omni Directional Multipoint applications
  • MMDS
  • Pubic Wireless Hotspot
  • WiMAX ,WiFi
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Collinear Vertical Polarization installation
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspot
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant
  • Base station antennas, miniature design

Frequency Range

2300MHz - 2400MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Collinear

Radiation Small Size Omni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array Dipole

Internal Material

Copper

Connector

N-Male

Length (MAX)

450 mm

Diameter (MAX)

20 x 20mm

Antenna Weight (G.W)

230 g

Accessories (G.W)

5 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Ground Material

Aluminum or Copper

Mount Style NO
Mounting Optional / Pole Mount / Well Mount

Wind Survival

Greater than 160MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

RoHS
