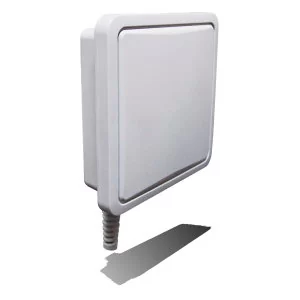

2.4GHz - 2.5 GHz 13dBi 2x2 MIMO Dual Polarized Enclosure Panel Outdoor Antenna2.4GHz - 2.5 GHz 13dBi 2x2 MIMO Dual Polarized Enclosure Panel Outdoor Antenna2.4GHz - 2.5 GHz 13dBi 2x2 MIMO Dual Polarized Enclosure Panel Outdoor Antenna

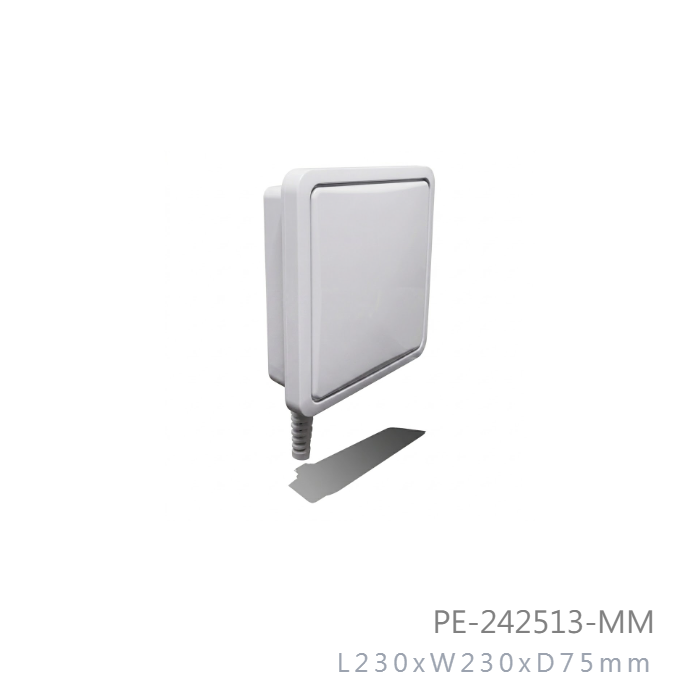

Model No: PE-242513-MM

  • Dimensions: L230xW230xD75mm
  • Weight: 0.9 KG
  • Connector: MMCX withRG178*15cm*2
  • Beam-width: Horz. Port1 :37 deg/ Port2 :35 deg
  • Vert. 33 deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11n Wireless Lan

  • 13.5dBi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • WiFi,RFID,WLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance designs

  • DC Short lightning protection

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

13 dBi

Polarization

Vertical and Horizontal

Maximum Power

5 Watts

-3db Vertical Beam-width

Port 1: 33 Deg

Port 2:33 Deg

-3db Horizontal Beam-width

Port1: 37 Deg

Port2: 35 Deg

FBR Greater than 25 dB

Impedance

50 Ohm

Antenna Design

4(2x2) Patch Array

Internal Material

FR4(Taiwan)

RF Cable RG178 / RG174/ other
Connector MMCX with RG178-15cm*2


Length x Width(MAX)

230 x 230mm

Diameter (MAX)

75mm

Antenna Weight (G.W)

900 g

Accessories (G.W)

300 g

Application

Indoor / Outdoor

Radome Material

White ABS

Parts Material

Aluminum

Mount Style

Pole Mount
Mounting Stainless Steel and Aluminum
Mount Adjustment 0-30 deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
