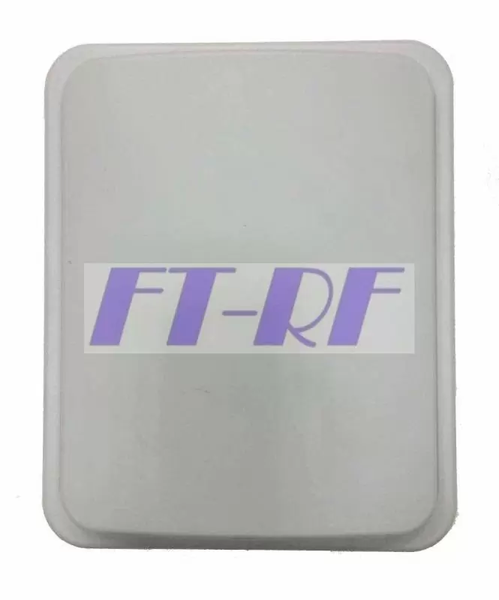

2.4GHz - 2.5GHz 10dbi Panel Directional Outdoor Antenna2.4GHz - 2.5GHz 10dbi Panel Directional Outdoor Antenna2.4GHz - 2.5GHz 10dbi Panel Directional Outdoor Antenna

Model No: PA-242510-NF

  • Dimensions: L180xW150xD25mm
  • Weight: 0.57 KG
  • Connector: N-Female
  • Beam-width: Horz.72 Deg Vert.38 Deg
INQUIRY

Applications:

  • 2.4GHz-2.5GHz ISM Band

  • IEEE 802.11b,802.11g,802.11b/g,802.11n Wireless Lan

  • 10dbi Directional Multipoint applications

  • Point to Point Bridge

  • Bluetooth

  • Public Wireless Hotspot

  • WiFi,RFID ,WiLAN

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight

  • Good appearance design

  • DC Short lightning protection

  • Narrow base station descent

  • Behind and support are made of aluminum

  • Outdoor antenna for public hotspots

  • Includes tilt and swivel mast mount brackets

  • RoHS Compliant

Frequency Range

2400MHz - 2500MHz

V.S.W.R (MAX)

1.3 :1

Antenna Type

Patch Type

Radiation Directional

Gain

10 dBi

Polarization

Vertical or Horizontal

Maximum Power

5 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

72 Deg

FBR  Greater than 18 dB

Impedance

50 Ohm

Antenna Design

2(1x2) Patch Array

Internal Material

FR4(Taiwan)

Connector

N-Female



Length x Width(MAX)

180 x 150mm

Diameter (MAX)

25mm

Antenna Weight (G.W)

370 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment 0-30deg

Wind Survival

Greater than 150MPH

Storage Temperature -40 to +80
Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS, CE, FCC, WEEE
